Single parts f trunk car telephone for BMW 7 Series E38 740iL (1995)

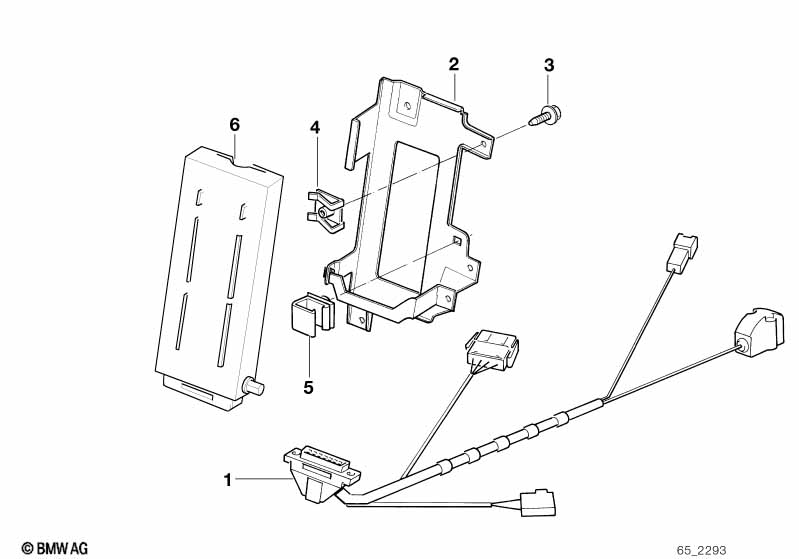

This Single parts f trunk car telephone technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.

Single parts f trunk car telephone
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Car telephone connection cable 1 84318362901 $190.15 ENDED, +core Shop at ECS Tuning
02 Bracket transmitter-receiver 1 84138375114 $9.57 ENDED Shop at ECS Tuning
03 Hex bolt M5X15 2 84318361762 $0.27 Shop at ECS Tuning
04 Body nut M5 2 61131372033 $1.37 Shop at ECS Tuning
05 Bracket, plug connection black 1 61131383892 $1.10 Shop at ECS Tuning
06 Transceiver E-38 1 84111469102 Shop at ECS Tuning
06 Transmitter-receiver MOTOROLA D-NETZ 1 84118360610 $616.00 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
