Single parts f trunk car telephone for BMW 3 Series E36 325tds (1995)

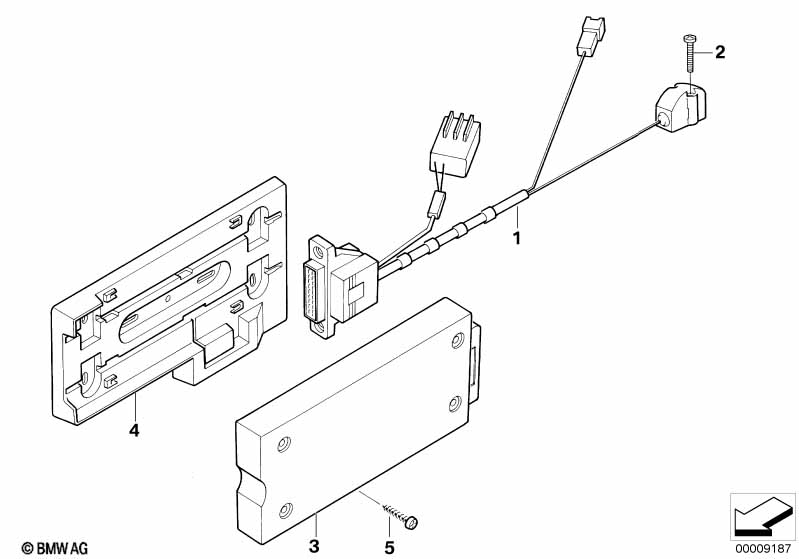

This Single parts f trunk car telephone technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.

Single parts f trunk car telephone
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Car telephone connection cable D-NETZ 1 84128361472 ENDED Shop at ECS Tuning
02 Oval-head screw black M4X30-4.8-H-ZN 2 07119907591 $0.40 Shop at ECS Tuning
04 Support f transmitter-receiver 1 84138361251 ENDED Shop at ECS Tuning
05 Fillister head self-tapping screw ST4,8X13-Z2 4 07119907957 $0.18 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

SINGLE PARTS F CENTRE CONSOLE TELEPHONE SINGLE PARTS F CENTRE CONSOLE TELEPHONE
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
SINGLE PARTS F TELEPHONE ROOF ANTENNA SINGLE PARTS F TELEPHONE ROOF ANTENNA

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E36 325tds Single parts f trunk car telephone?
This technical diagram illustrates the Single parts f trunk car telephone within the Communication systems group for the 3 Series E36 325tds produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Car telephone connection cable (Part #84128361472).
Which models use the hardware listed in this Single parts f trunk car telephone?
The hardware and components featured in the Single parts f trunk car telephone are specific to the 3 Series E36 325tds produced during 1995. These technical specifications ensure that parts like the Car telephone connection cable (84128361472) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Single parts f trunk car telephone assembly?
Each item in the Single parts f trunk car telephone corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Car telephone connection cable by locating its position on the schematic, which then links to the official BMW part number 84128361472 for the Communication systems section.
