Single parts f trunk car telephone for BMW 3 Series E36 318is (1998)

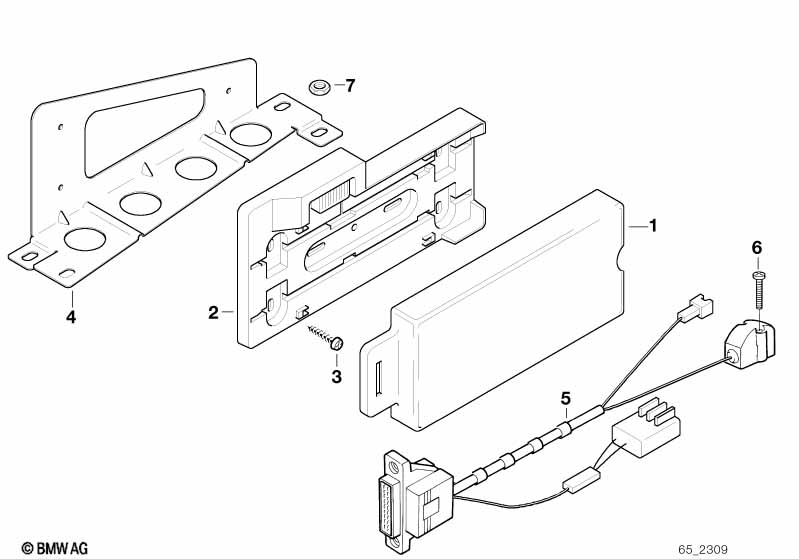

This Single parts f trunk car telephone technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.

Single parts f trunk car telephone
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmitter-receiver MOTOROLA V PLUS 1 03/1997 84116911042 ENDED Shop at ECS Tuning
02 Support f transmitter-receiver 1 84138361251 ENDED Shop at ECS Tuning
03 Fillister head screw M4X8 3 07119906407 $1.64 Shop at ECS Tuning
04 Bracket transmitter-receiver 1 65618119311 ENDED Shop at ECS Tuning
05 Car telephone connection cable MOTOROLA D-NETZ 1 84128375232 $123.88 Shop at ECS Tuning
06 Oval-head screw black M4X30-4.8-H-ZN 2 07119907591 $0.40 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).

See Also

SINGLE PARTS F CENTRE CONSOLE TELEPHONE SINGLE PARTS F CENTRE CONSOLE TELEPHONE
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
HANDS-FREE TELEPHONE HANDS-FREE TELEPHONE
SINGLE PARTS F TELEPHONE ROOF ANTENNA SINGLE PARTS F TELEPHONE ROOF ANTENNA

Frequently Asked Questions

What assembly is shown in the BMW 3 Series E36 318is Single parts f trunk car telephone?
This technical diagram illustrates the Single parts f trunk car telephone within the Communication systems group for the 3 Series E36 318is produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Transmitter-receiver (Part #84116911042).
Which models use the hardware listed in this Single parts f trunk car telephone?
The hardware and components featured in the Single parts f trunk car telephone are specific to the 3 Series E36 318is produced during 1998. These technical specifications ensure that parts like the Transmitter-receiver (84116911042) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Single parts f trunk car telephone assembly?
Each item in the Single parts f trunk car telephone corresponds to the numbered list below the illustration. For the 3 Series E36 318is, you can identify the Transmitter-receiver by locating its position on the schematic, which then links to the official BMW part number 84116911042 for the Communication systems section.
