Singl.parts f trunk mobile d net for BMW 7 Series E38 750iLP (2001)

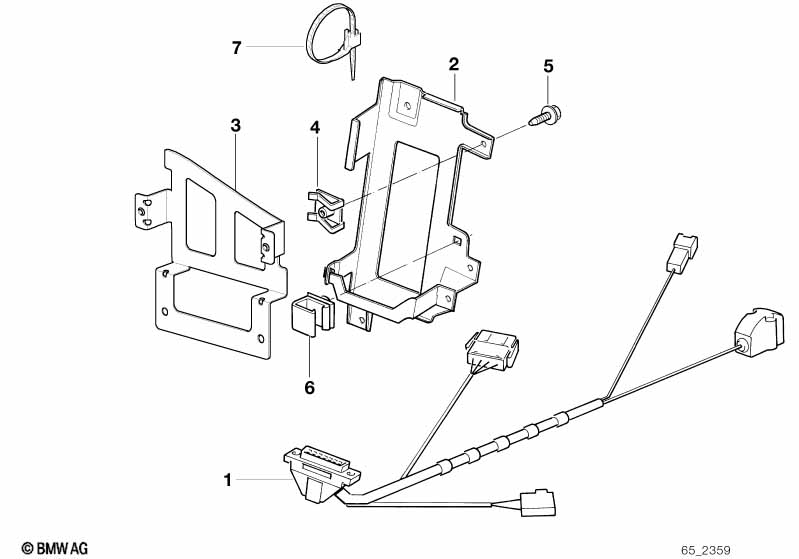

This Singl.parts f trunk mobile d net technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.

Singl.parts f trunk mobile d net
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 D network handy connection cable 1 61128373777 $142.23 ENDED Shop at ECS Tuning
02 Bracket transmitter-receiver 1 84138375114 $9.57 ENDED Shop at ECS Tuning
03 Bracket transmitter-receiver 1 84138374819 $11.51 ENDED Shop at ECS Tuning
04 Body nut M5 2 61131372033 $1.37 Shop at ECS Tuning
05 Hex bolt M5X14 2 07119902932 $0.53 Shop at ECS Tuning
06 Bracket, plug connection white 1 61138365550 $1.10 Shop at ECS Tuning
07 Cable tie L=200MM/B=3,6MM 1 61131367599 $0.43 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
