Single parts, SA 630, trunk for BMW 3 Series E46 318i (2002)

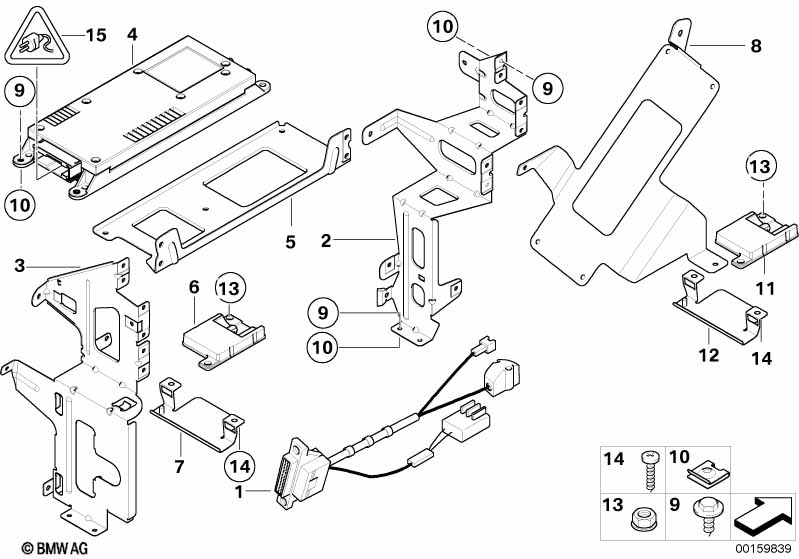

This Single parts, SA 630, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2002.

Single parts, SA 630, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Base support system, front 1 65128370924 $12.88 Shop at ECS Tuning
03 Base support system, rear 1 65128370932 $12.88 Shop at ECS Tuning
04 Transmitter-receiver SIEMENS BIT II 1 12/2001 84116924823 Shop at ECS Tuning
05 Bracket transmitter-receiver 1 84136909220 ENDED Shop at ECS Tuning
06 Antenna BLUETOOTH 1 84506928461 $24.30 +core Shop at ECS Tuning
07 Bracket f basis antenna 1 84136912160 $3.86 Shop at ECS Tuning
08 Bracket transmitter-receiver 1 84136913304 $9.71 ENDED Shop at ECS Tuning
09 Hex bolt M5X14 X 07119902932 $0.53 Shop at ECS Tuning
10 Body nut M5 X 61131372033 $1.37 Shop at ECS Tuning
11 Antenna BLUETOOTH 1 84506928461 $24.30 +core Shop at ECS Tuning
12 Bracket f basis antenna 1 84136912160 $3.86 Shop at ECS Tuning
13 Hex nut with plate M5 2 63259128043 $0.72 Shop at ECS Tuning
14 Sheet metal screw ST4,2X19-U2-C-H 2 07119904176 $0.25 Shop at ECS Tuning
15 Rep. kit for socket housing 54 POL. 1 61132471244 Shop at ECS Tuning
only in conjunction with
-- Socket housing 37-54POL. 1 61136909070 $1.08 Shop at ECS Tuning
-- Socket housing 36 POL. 1 61136920062 $1.22 Shop at ECS Tuning
-- Socket terminal MQS 0.2-0.5MM²/SN 54 61138369696 $0.28 Shop at ECS Tuning
-- Socket terminal MQS 0.75 MM² /SN 54 61138369700 $0.35 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
