Single parts f V-Series luggage compart. for BMW 3 Series E46 318i (2001)

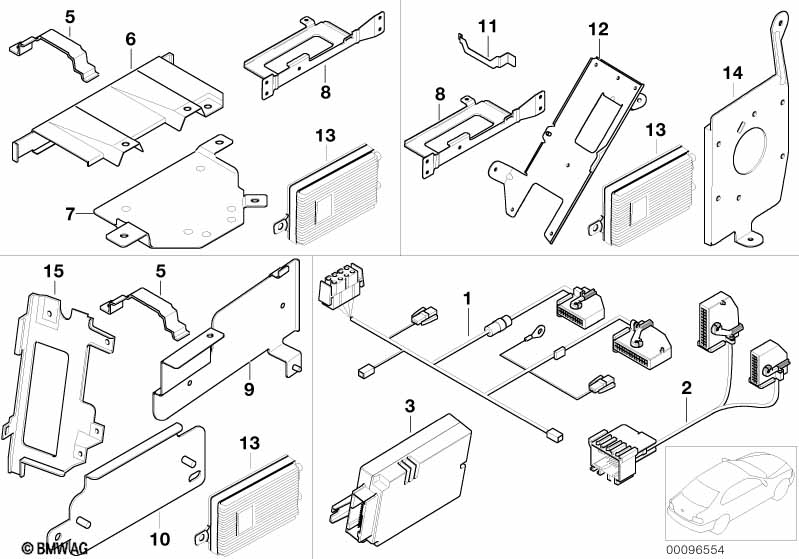

This Single parts f V-Series luggage compart. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.

Single parts f V-Series luggage compart.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Preparation f tel.installation universal
S640A=No
01 Retrofit wiring harness UNI I 1 61120027470 $206.46 ENDED Shop at ECS Tuning
only in conjunction with
-- Cable adapter V50/V3690 1 61120025612 $47.99 ENDED Shop at ECS Tuning
-- Cable adapter MOTOROLAV-SERIE 1 61120027777 $138.72 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
only suitable when
Autotelefon nachgerüstet wurde
S640A=No
02 Cable adapter MOTOROLAV-SERIE 1 61120027777 $138.72 ENDED Shop at ECS Tuning
03 Charging electronics, hands-free MOTOROLA V.3690 1 84216921857 $299.09 ENDED Shop at ECS Tuning
For vehicles with
Navigation system Professional
or
CD changer for 6 CDs
S609A=Yes

S672A=Yes
05 Attachment clamp for hands-free module 1 84138374359 $2.32 Shop at ECS Tuning
06 Bracket transmitter-receiver 1 84138361643 $5.03 ENDED Shop at ECS Tuning
07 Bracket 1 84139410889 $7.00 ENDED Shop at ECS Tuning
For vehicles with
Navigation system Professional
or
CD changer for 6 CDs
S609A=Yes

S672A=Yes
08 Bracket transmitter-receiver 1 84138376241 $5.52 Shop at ECS Tuning
13 Dual band cable compensator 1 84216907520 $285.00 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
