Single parts f Apollo luggage compartm. for BMW 3 Series E46 330d (2004)

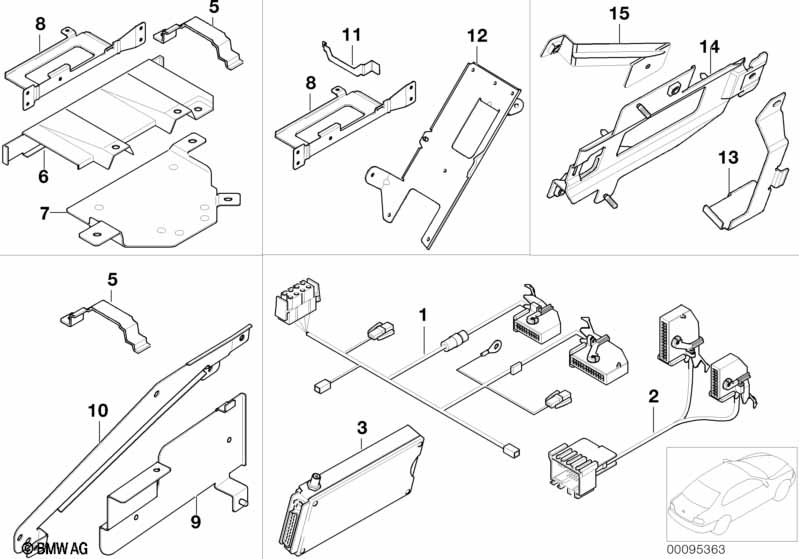

This Single parts f Apollo luggage compartm. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.

Single parts f Apollo luggage compartm.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Preparation f tel.installation universal
S640A=No
01 Retrofit wiring harness UNI II 1 09/2001 61120143309 $209.95 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
S640A=Yes
02 Cable adapter APOLLO 1 03/2002 61120145775 $25.25 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
and
Retrofit, car telephone Apollo
S640A=No

=Yes
02 Cable adapter APOLLO 1 09/2001 61120145775 $25.25 ENDED Shop at ECS Tuning
05 Attachment clamp for hands-free module 1 84138374359 $2.32 Shop at ECS Tuning
For vehicles with
On-board monitor with TV
and
Navigation system, radio
and
Navigation system Professional
and
Radio BMW Professional
and
HiFi System Professional DSP
S602A=No

S606A=No

S609A=No

S663A=No

S677A=No
06 Bracket transmitter-receiver 1 84138361643 $5.03 ENDED Shop at ECS Tuning
07 Bracket 1 84139410889 $7.00 ENDED Shop at ECS Tuning
For vehicles with
On-board monitor with TV
or
Navigation system, radio
or
Navigation system Professional
or
Radio BMW Professional
or
HiFi System Professional DSP
S602A=Yes

S606A=Yes

S609A=Yes

S663A=Yes

S677A=Yes
08 Bracket transmitter-receiver 1 84138376241 $5.52 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
