Single parts f V-Series luggage compart. for BMW 7 Series E38 730i (1996)

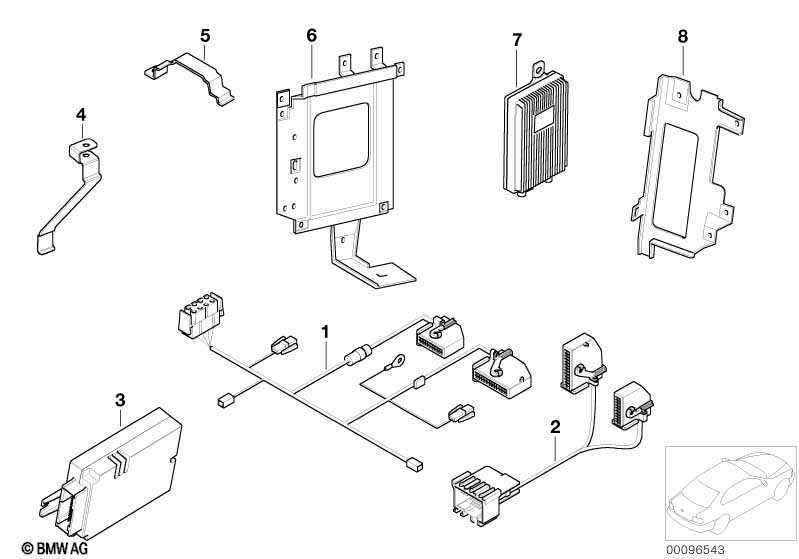

This Single parts f V-Series luggage compart. technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.

Single parts f V-Series luggage compart.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Preparation f tel.installation universal
S640A=No
02 Cable adapter MOTOROLAV-SERIE 1 61120027777 $138.72 ENDED Shop at ECS Tuning
only suitable when
Autotelefon nachgerüstet wurde
03 Charging electronics, hands-free MOTOROLA V.3690 1 84216921857 $299.09 ENDED Shop at ECS Tuning
04 Fixing bow PHASE V 1 84138384432 $2.36 ENDED Shop at ECS Tuning
05 Fixing bow f transmitter-receiver 1 84318362433 $2.51 ENDED Shop at ECS Tuning
06 Base support system 1 65128352488 $27.06 Shop at ECS Tuning
07 Dual band cable compensator 1 84216907520 $285.00 ENDED Shop at ECS Tuning
08 D network handy line compensator bracket MOTOROLA 1 84218372652 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
