Single parts f Cordless lugga. compartm. for BMW 5 Series E39 525i (2003)

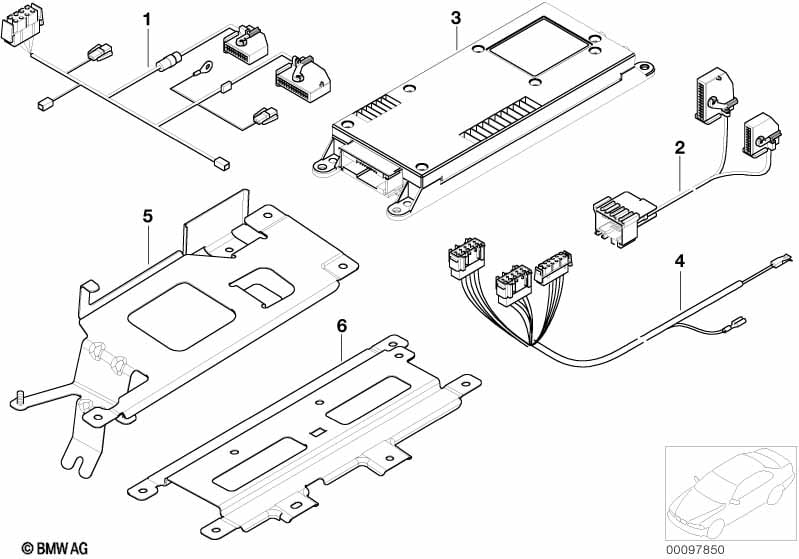

This Single parts f Cordless lugga. compartm. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Single parts f Cordless lugga. compartm.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Preparation f tel.installation universal
S640A=No
01 Retrofit wiring harness 1 09/2001 61120143315 $200.95 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
S640A=Yes
02 Cable adapter, transceiver CORDLESS 1 03/2002 61126921884 $46.75 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
and
Retrofit car telephone Cordless
S640A=No

=Yes
02 Cable adapter, transceiver CORDLESS 1 09/2001 61126921884 $46.75 ENDED Shop at ECS Tuning
03 Transmitter-receiver SIEMENS BIT II 1 84116924823 Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
S640A=No
04 Electric power cable GSM-TELEFON 1 84129405572 ENDED Shop at ECS Tuning
06 Bracket transmitter-receiver SIEMENS BIT II 1 84136908460 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
