Single parts, SA 638, trunk for BMW 5 Series E39 525d (2003)

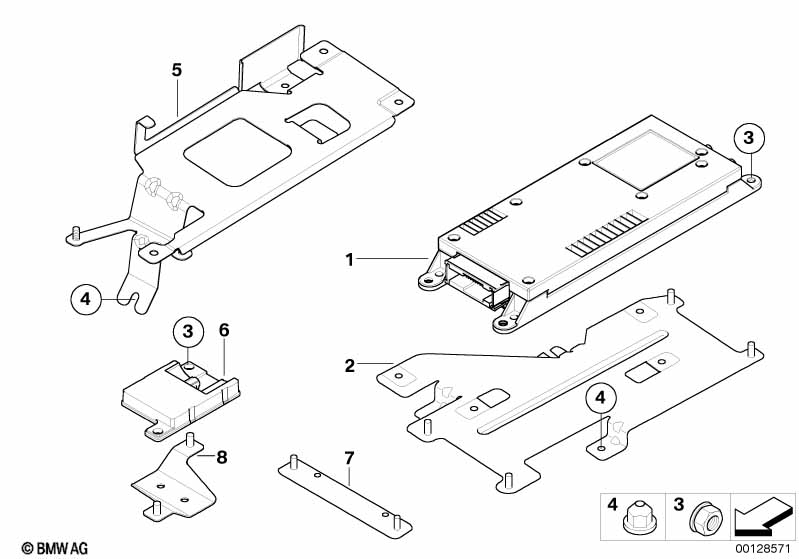

This Single parts, SA 638, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Single parts, SA 638, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Observe PUMA Measure 53476121
01 Telematics control unit GSM 1 84106978533 ENDED Shop at ECS Tuning
01 RP REMAN Telematic Control Unit GSM 1 84109187926 Shop at ECS Tuning
02 Bracket for telematics control module 1 84136924548 $19.42 Shop at ECS Tuning
03 Hex nut with plate M5 6 63259128043 $0.72 Shop at ECS Tuning
04 Cap nut M5 5 51711934930 $0.23 Shop at ECS Tuning
06 Antenna BLUETOOTH 1 84506928461 $24.30 +core Shop at ECS Tuning
For vehicles with
Voice control
S620A=Yes
07 Bracket for telematics ctrl module/SES 1 84136924549 ENDED Shop at ECS Tuning
08 Bracket, Bluetooth antenna 1 09/2003 84136936910 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
