Single parts, SA 644, trunk for BMW 5 Series E39 528i (2000)

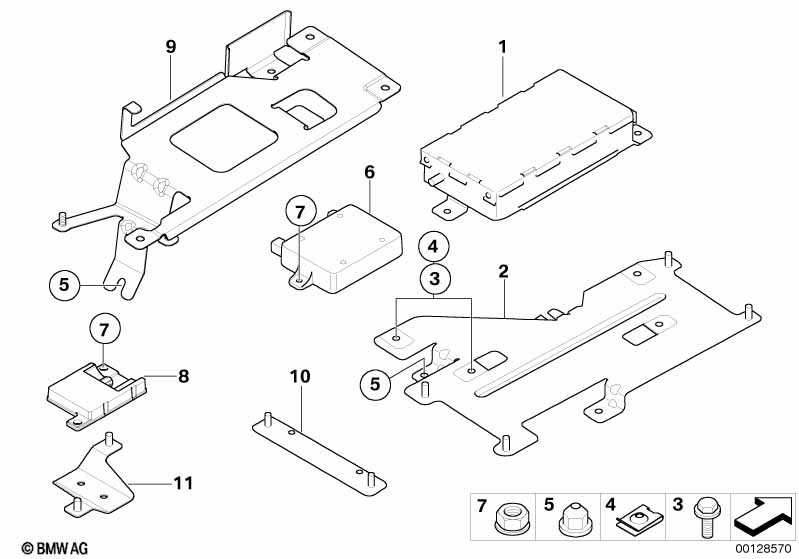

This Single parts, SA 644, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single parts, SA 644, trunk
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charging electronics, hands-free 1 10/2002 84216915563 ENDED Shop at ECS Tuning
01 Charging electronics, hands-free 1 03/2003 84106931854 ENDED Shop at ECS Tuning
01 Charging electronics, hands-free 1 84109154358 $569.47 ENDED Shop at ECS Tuning
02 Bracket for telematics control module 1 84136924548 $19.42 Shop at ECS Tuning
03 Hex bolt M5X14 4 07119902932 $0.53 Shop at ECS Tuning
04 Body nut M5 4 61131372033 $1.37 Shop at ECS Tuning
05 Cap nut M5 5 51711934930 $0.23 Shop at ECS Tuning
can be installed as an option
06 Dual band cable compensator 1 84216932865 $342.63 Shop at ECS Tuning
07 Hex nut with plate M5 3 63259128043 $0.72 Shop at ECS Tuning
08 Antenna BLUETOOTH 1 84506928461 $24.30 +core Shop at ECS Tuning
09 Bracket transmitter-receiver 1 09/2003 84136908459 $6.93 Shop at ECS Tuning
For vehicles with
Voice control
S620A=Yes
10 Bracket for telematics ctrl module/SES 1 84136924549 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
