Single parts, SA 644, trunk for BMW 3 Series E46 316ti (2004)

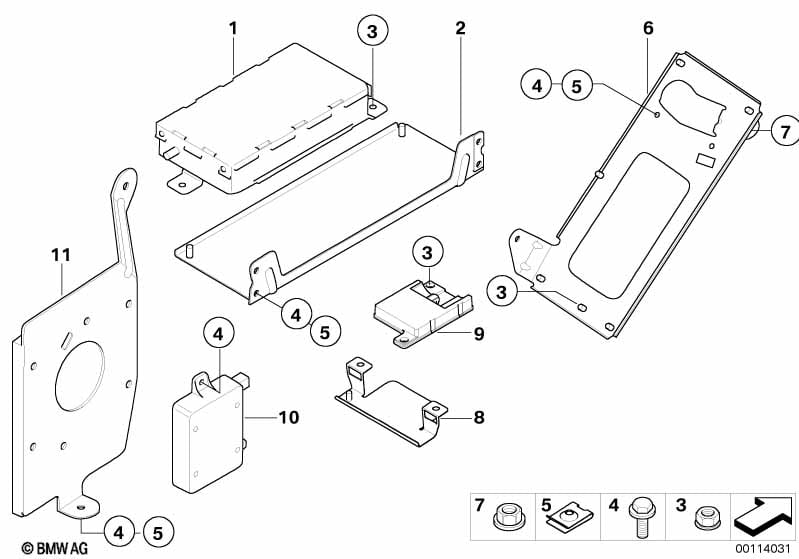

This Single parts, SA 644, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 316ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charging electronics, hands-free | 1 | 84109154358 | $569.47 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional or CD changer for 6 CDs or Preparation, BMW 6-CD changer I-bus |
S609A=Yes S672A=Yes S692A=Yes |
|||||||||
| 02 | Bracket for telematics control module | 1 | 84136924699 | ENDED | Shop at ECS Tuning | |||||
| 03 | Hex nut with plate | M5 | 4 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Bracket for telematics control module | 1 | 84136924689 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex nut with plate | M6 | 1 | 01/2007 | 41127028600 | $0.33 | Shop at ECS Tuning | |||
| 07 | Hex nut | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Bracket f basis antenna | 1 | 84136912160 | $3.86 | Shop at ECS Tuning | |||||
| 09 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| can be installed as an option | ||||||||||
| 10 | Dual band cable compensator | 1 | 84216932865 | $342.63 | Shop at ECS Tuning | |||||
| 11 | D network handy line compensator bracket | 1 | 84136904654 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 316ti Single parts, SA 644, trunk?
- This technical diagram illustrates the Single parts, SA 644, trunk within the Communication systems group for the 3 Series E46 316ti produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Charging electronics, hands-free (Part #84109154358).
- Which models use the hardware listed in this Single parts, SA 644, trunk?
- The hardware and components featured in the Single parts, SA 644, trunk are specific to the 3 Series E46 316ti produced during 2004. These technical specifications ensure that parts like the Charging electronics, hands-free (84109154358) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, SA 644, trunk assembly?
- Each item in the Single parts, SA 644, trunk corresponds to the numbered list below the illustration. For the 3 Series E46 316ti, you can identify the Charging electronics, hands-free by locating its position on the schematic, which then links to the official BMW part number 84109154358 for the Communication systems section.
