Single parts, SA 644, trunk for BMW 3 Series E46 320Cd (2006)

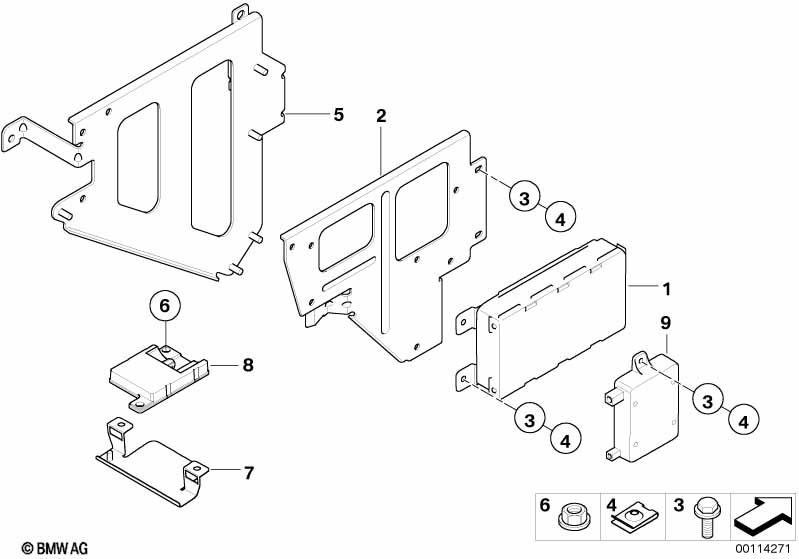

This Single parts, SA 644, trunk technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Charging electronics, hands-free | 1 | 84109154358 | $569.47 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bracket for telematics control module | 1 | 84136924948 | $9.80 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M5X14 | 9 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 04 | Body nut | M5 | 9 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| For vehicles with TV function or On-board monitor with TV |
S601A=Yes S602A=Yes |
|||||||||
| 05 | Bracket for telematics control module | 1 | 84136924688 | Shop at ECS Tuning | ||||||
| 06 | Hex nut with plate | M5 | 5 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 07 | Bracket f basis antenna | 1 | 84136912160 | $3.86 | Shop at ECS Tuning | |||||
| 08 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| can be installed as an option | ||||||||||
| 09 | Dual band cable compensator | 1 | 84216932865 | $342.63 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
