Single parts f Classic luggage compartm. for BMW 5 Series E39 525i (2003)

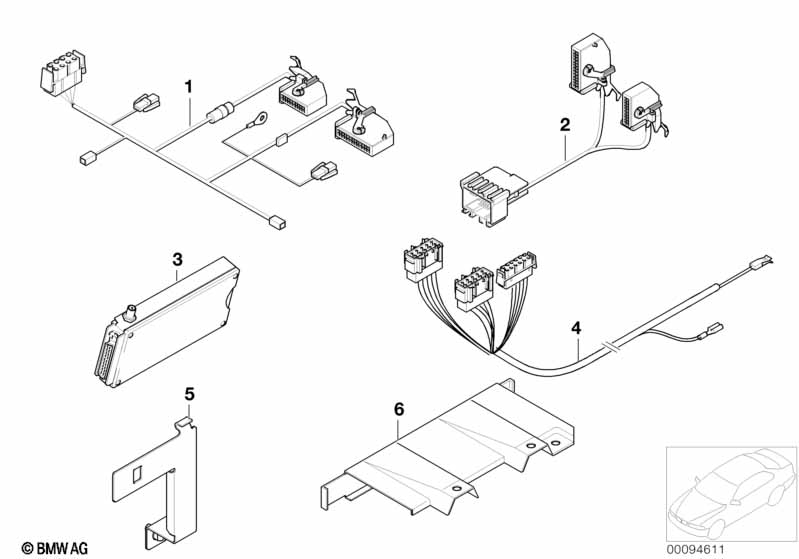

This Single parts f Classic luggage compartm. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Single parts f Classic luggage compartm.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Preparation f tel.installation universal
S640A=No
01 Retrofit wiring harness 1 09/2001 61120143315 $200.95 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
S640A=Yes
02 Cable adapter APOLLO 1 03/2002 61120145775 $25.25 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
and
Retrofit, car telephone Apollo
S640A=No

=Yes
02 Cable adapter APOLLO 1 09/2001 61120145775 $25.25 ENDED Shop at ECS Tuning
03 Transmitter-receiver MOTOROLA V PLUS 1 84116911042 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
S640A=No
04 Electric power cable GSM-TELEFON 1 84129405572 ENDED Shop at ECS Tuning
05 Fixing bow f transmitter-receiver MOTOROLA 1 84136902490 $4.62 Shop at ECS Tuning
06 Bracket transmitter-receiver 1 84138361643 $5.03 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
