Tandem car telephone parts for BMW 7 Series E65 760i (2005)

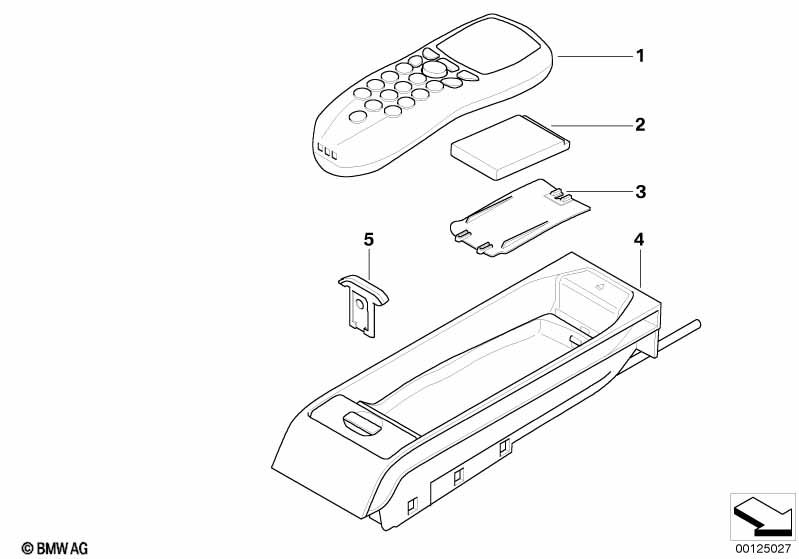

This Tandem car telephone parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 760i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.

Tandem car telephone parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Handset EVEREST 1 09/2003 09/2005 84116953468 ENDED Shop at ECS Tuning
02 Battery EVEREST 1 09/2003 09/2005 84116927534 Shop at ECS Tuning
03 Battery cover, keypad handset EVEREST 1 09/2003 09/2005 84116927533 ENDED Shop at ECS Tuning
04 Tandem car telephone eject-box GSM 1 09/2003 09/2005 84116933412 Shop at ECS Tuning
05 SIM card holder 1 09/2003 09/2005 84116928068 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
