Single parts, SA 638, trunk for BMW 5 Series E60 523i (2006)

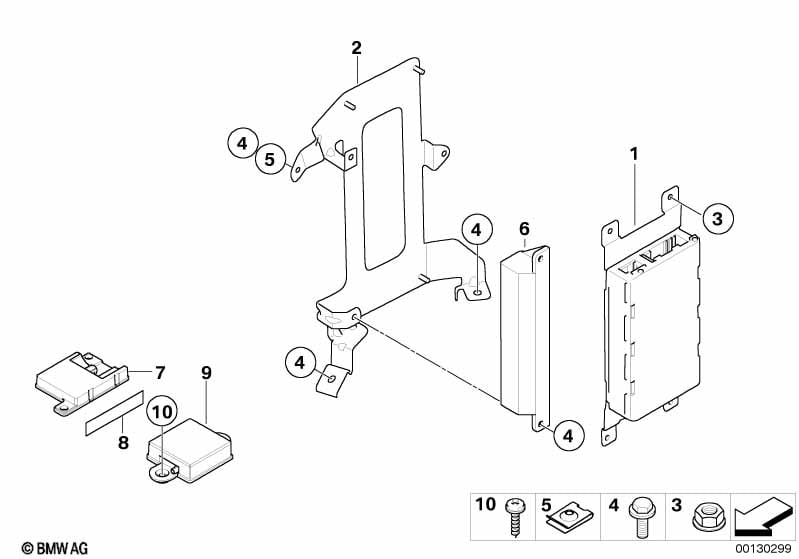

This Single parts, SA 638, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Bracket for telematics control module | 1 | 84136924420 | $13.33 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M5 | 4 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X14 | 5 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 1 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 07 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| 08 | Fillister head screw | 2 | 06/2004 | 07147122392 | $0.29 | Shop at ECS Tuning | ||||
| 09 | Back-Up Antenna | 1 | 65206935024 | $29.04 | Shop at ECS Tuning | |||||
| 10 | Push-button | 2 | 65206933753 | $0.77 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 523i Single parts, SA 638, trunk?
- This technical diagram illustrates the Single parts, SA 638, trunk within the Communication systems group for the 5 Series E60 523i produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Bracket for telematics control module (Part #84136924420).
- Which models use the hardware listed in this Single parts, SA 638, trunk?
- The hardware and components featured in the Single parts, SA 638, trunk are specific to the 5 Series E60 523i produced during 2006. These technical specifications ensure that parts like the Bracket for telematics control module (84136924420) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, SA 638, trunk assembly?
- Each item in the Single parts, SA 638, trunk corresponds to the numbered list below the illustration. For the 5 Series E60 523i, you can identify the Bracket for telematics control module by locating its position on the schematic, which then links to the official BMW part number 84136924420 for the Communication systems section.
