Single parts SA 639/SA 664, trunk for BMW 5 Series E60 523i (2007)

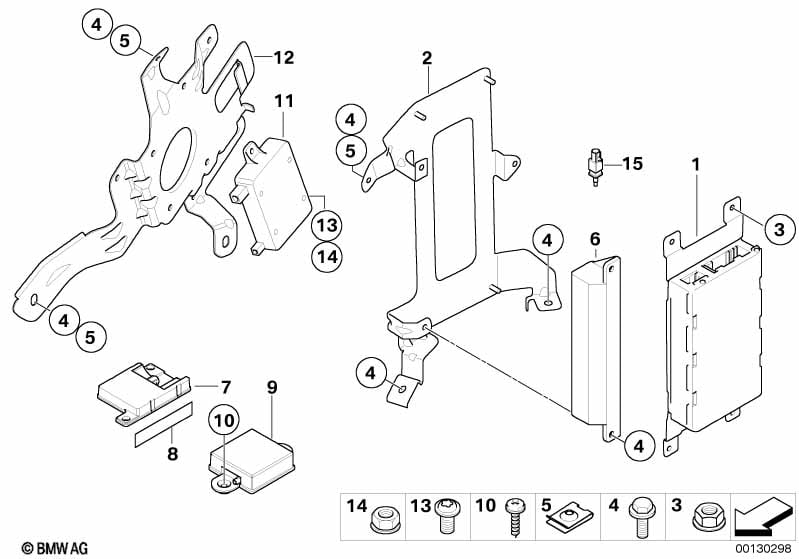

This Single parts SA 639/SA 664, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Mobile phone, US standard |
S664A=Yes |
|||||||||
| 01 | Exch. telematics control unit | CDMA | 1 | 03/2005 | 03/2007 | 84109171590 | $1317.30 | ENDED | Shop at ECS Tuning | |
| 01 | RP REMAN Telematic Control Unit | CDMA | 1 | 03/2005 | 03/2007 | 84109181230 | $403.59 | ENDED | Shop at ECS Tuning | |
| 02 | Bracket for telematics control module | 1 | 03/2007 | 84136924420 | $13.33 | Shop at ECS Tuning | ||||
| 03 | Hex nut | M5 | 4 | 03/2007 | 07129906048 | $0.73 | Shop at ECS Tuning | |||
| 04 | Hex bolt | M5X14 | 5 | 03/2007 | 07119902932 | $0.53 | Shop at ECS Tuning | |||
| 05 | Body nut | M5 | 1 | 03/2007 | 61131372033 | $1.37 | Shop at ECS Tuning | |||
| 15 | HF-connector | 1 | 03/2007 | 84116936191 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
