Single parts, SA 644, trunk for BMW 5 Series E60 LCI 520d (2009)

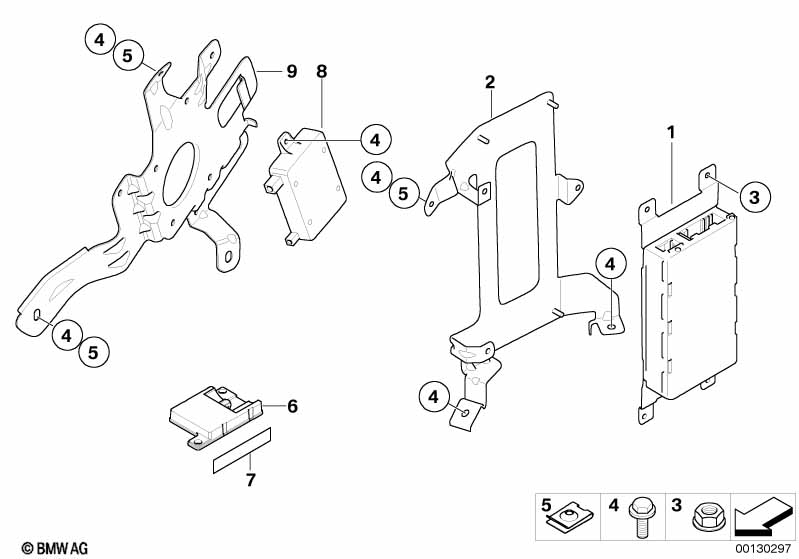

This Single parts, SA 644, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=Yes S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=No S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=No S609A=No |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=Yes S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=No S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=No S609A=No |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=Yes S6FLA=No S609A=Yes |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=No S6FLA=No S609A=Yes |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=No S6FLA=No S609A=No |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No L812A=Yes L801A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No L812A=No L801A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=No S620A=Yes S609A=No L812A=Yes L801A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=No S620A=Yes S609A=No L812A=No L801A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=No S644A=Yes S620A=Yes S609A=No L812A=Yes L801A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=No S644A=Yes S620A=Yes S609A=No L812A=No L801A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S854A=Yes S856A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S854A=No S856A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=No S620A=Yes S609A=No S854A=Yes S856A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=No S620A=Yes S609A=No S854A=No S856A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=No S644A=Yes S620A=Yes S609A=No S854A=Yes S856A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=No S644A=Yes S620A=Yes S609A=No S854A=No S856A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S855A=Yes S868A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S855A=No S868A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=No S620A=Yes S609A=No S855A=Yes S868A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=No S620A=Yes S609A=No S855A=No S868A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=No S644A=Yes S620A=Yes S609A=No S855A=Yes S868A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=No S644A=Yes S620A=Yes S609A=No S855A=No S868A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| 02 | Bracket for telematics control module | 1 | 84136924420 | $13.33 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M5 | 4 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X14 | 8 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Body nut | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| 07 | Fillister head screw | 2 | 06/2004 | 07147122392 | $0.29 | Shop at ECS Tuning | ||||
| can be installed as an option | ||||||||||
| 08 | Dual band cable compensator | 1 | 84216932865 | $342.63 | Shop at ECS Tuning | |||||
| 09 | Bracket, satellite- radio/compensator | 1 | 65106925468 | $11.77 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
