Sing.parts,multiband teleph./GPS antenna for BMW 6 Series E64 650i (2007)

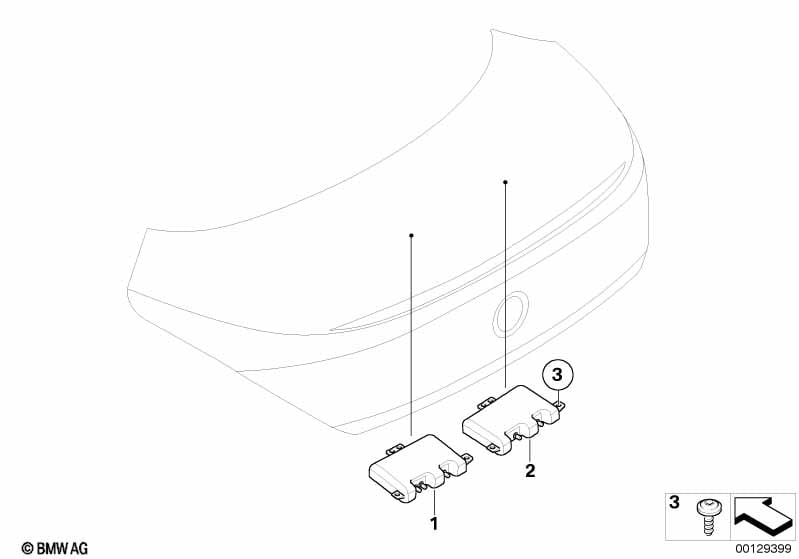

This Sing.parts,multiband teleph./GPS antenna technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 650i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Satellite tuner and Preparation BMW satellite radio |
S655A=No S693A=No |
|||||||||
| 01 | Multiband telephone antenna left | 1 | 07/2010 | 65206957347 | $200.03 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Satellite tuner or Preparation BMW satellite radio |
S655A=Yes S693A=Yes |
|||||||||
| 01 | Multiband telephone antenna left | 1 | 03/2006 | 65206953212 | $281.38 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional or Preparation, mobile phone, Business or Preparation f mobile phone cpl. USA/CDN |
S609A=Yes S633A=Yes S639A=Yes |
|||||||||
| 02 | Multiband telephone antenna right | 1 | 65209396828 | Shop at ECS Tuning | ||||||
| 03 | Fillister head screw | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
