Antenna line, telephone for BMW 5 Series E60 525i (2007)

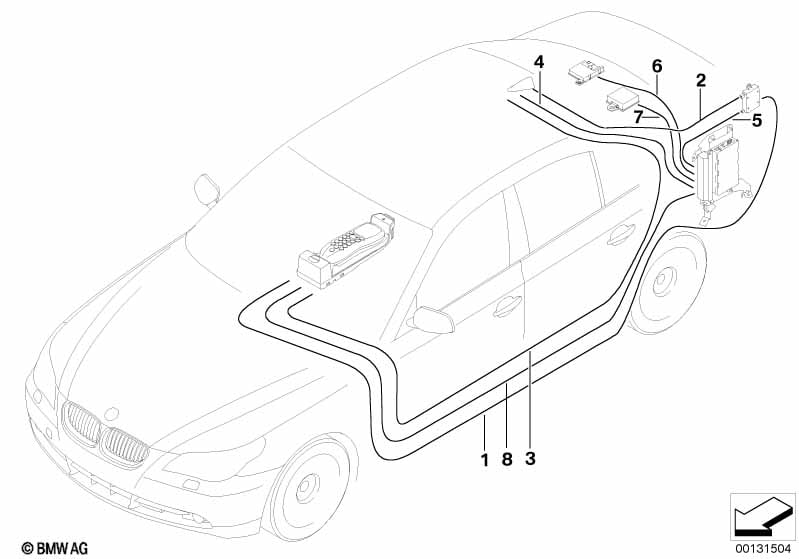

This Antenna line, telephone technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Fabricate deleted antenna cable using coaxial cable repair part assortment (see notices in Text Image Unit) |
|||||||||
| For vehicles with Preparation f mobile phone cpl. USA/CDN or Preparation f tel.installation universal or Prep. mobile phone USA Universal or Preparation f mobile phone w Bluetooth |
S639A=Yes S640A=Yes S641A=Yes S644A=Yes |
|||||||||
| 01 | Antenna line, telephone | L= 4990 MM | 1 | 61126941301 | $35.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Preparation f mobile phone cpl. USA/CDN or Prep. mobile phone USA Universal |
S639A=Yes S641A=Yes |
|||||||||
| 02 | Antenna line, telephone | L= 3170 MM | 1 | 61126941307 | $35.20 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Preparation f mobile phone w Bluetooth |
S644A=Yes |
|||||||||
| 04 | Antenna line, telephone | L= 2250 MM | 1 | 61126941305 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 07 | Antenna line, telephone | L=1720 MM | 1 | 61126941309 | $35.20 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
