Single parts antenna for BMW 5 Series E61 LCI 525d (2010)

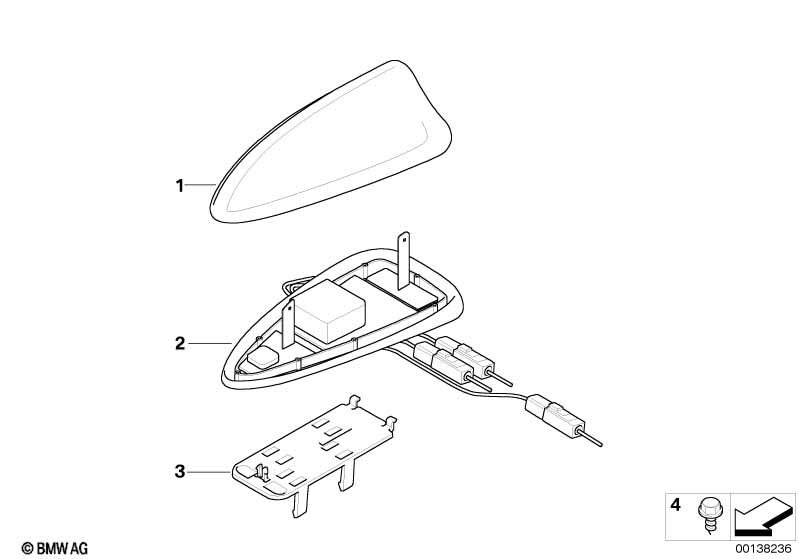

This Single parts antenna technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Empty housing for roof antenna, painted | CODE-UNI/MET. | 1 | 65200308645 | ENDED | Shop at ECS Tuning | ||||
| 01 | Empty housing for roof antenna, primed | 1 | 65206929373 | $54.55 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=Yes S609A=No S633A=Yes S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 09/2005 | 65206943022 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=Yes S609A=No S633A=No S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 09/2005 | 65206943022 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=Yes S633A=Yes S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 09/2005 | 65206943022 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=Yes S633A=No S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 09/2005 | 65206943022 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=No S633A=Yes S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 09/2005 | 65206943022 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=No S633A=No S654A=Yes |
|||||||||
| 02 | Roof antenna | 1 | 09/2005 | 65206943022 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=Yes S609A=No S633A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 03/2005 | 65206957345 | $79.16 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=Yes S633A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 03/2005 | 65206957345 | $79.16 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business and Navigation system Professional and Preparation, mobile phone, Business and DAB tuner |
S606A=No S609A=No S633A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 03/2005 | 65206957345 | $79.16 | Shop at ECS Tuning | ||||
| For vehicles with Car telephone Professional and Preparation f tel.installation universal and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and DAB tuner and Navigation system Business and Navigation system Professional |
S638A=Yes S640A=No S641A=No S644A=No S654A=No S606A=No S609A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957346 | $39.58 | Shop at ECS Tuning | |||||
| For vehicles with Car telephone Professional and Preparation f tel.installation universal and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and DAB tuner and Navigation system Business and Navigation system Professional |
S638A=No S640A=Yes S641A=No S644A=No S654A=No S606A=No S609A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957346 | $39.58 | Shop at ECS Tuning | |||||
| For vehicles with Car telephone Professional and Preparation f tel.installation universal and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and DAB tuner and Navigation system Business and Navigation system Professional |
S638A=No S640A=No S641A=Yes S644A=No S654A=No S606A=No S609A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957346 | $39.58 | Shop at ECS Tuning | |||||
| For vehicles with Car telephone Professional and Preparation f tel.installation universal and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and DAB tuner and Navigation system Business and Navigation system Professional |
S638A=No S640A=No S641A=No S644A=Yes S654A=No S606A=No S609A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957346 | $39.58 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=Yes S609A=No S638A=Yes S641A=No S644A=No S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=Yes S609A=No S638A=No S641A=Yes S644A=No S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=Yes S609A=No S638A=No S641A=No S644A=Yes S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=Yes S609A=No S638A=No S641A=No S644A=No S664A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=Yes S609A=No S638A=No S641A=No S644A=No S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=No S609A=Yes S638A=Yes S641A=No S644A=No S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=No S609A=Yes S638A=No S641A=Yes S644A=No S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=No S609A=Yes S638A=No S641A=No S644A=Yes S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=No S609A=Yes S638A=No S641A=No S644A=No S664A=Yes S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| For vehicles with Navigation system Business and Navigation system Professional and Car telephone Professional and Prep. mobile phone USA Universal and Preparation f mobile phone w Bluetooth and Mobile phone, US standard and DAB tuner |
S606A=No S609A=Yes S638A=No S641A=No S644A=No S664A=No S654A=No |
|||||||||
| 02 | Roof antenna | 1 | 65206957344 | $79.16 | Shop at ECS Tuning | |||||
| 04 | Sheet metal screw | ISA M5X12 | 1 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
