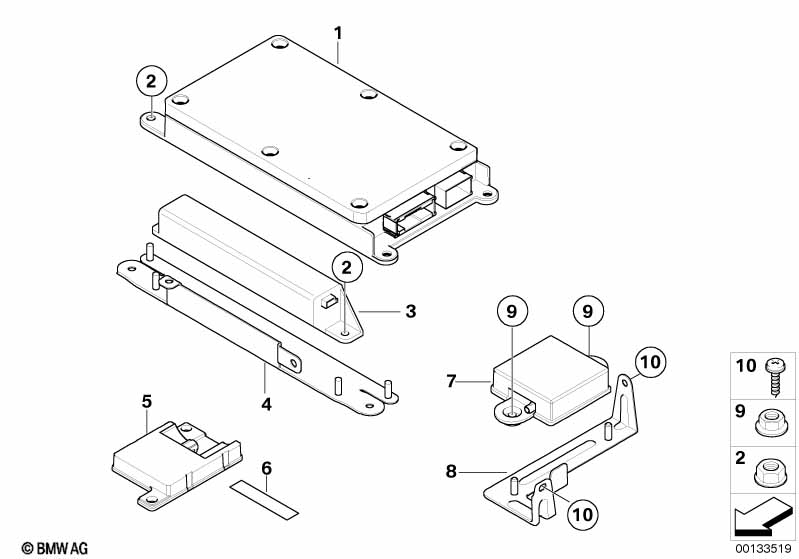

Single parts, SA 638, trunk for BMW 5 Series E61 525xi (2007)
This Single parts, SA 638, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 525xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex nut | M5 | 8 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| For vehicles with Telematics preparation |
S605A=Yes |
|||||||||
| 04 | Bracket, additional battery | 1 | 84136922528 | ENDED, +core | Shop at ECS Tuning | |||||
| 05 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| 06 | Fillister head screw | 2 | 06/2004 | 07147122392 | $0.29 | Shop at ECS Tuning | ||||
| For vehicles with Telematics preparation |
S605A=Yes |
|||||||||
| 07 | Back-Up Antenna | 1 | 65206935024 | $29.04 | Shop at ECS Tuning | |||||
| 08 | Bracket Back-Up Antenna | 1 | 65206936693 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex nut wiht flange | M6 | 2 | 41248147832 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
