Single parts, SA 644, trunk for BMW 5 Series E61 LCI 520d (2007)

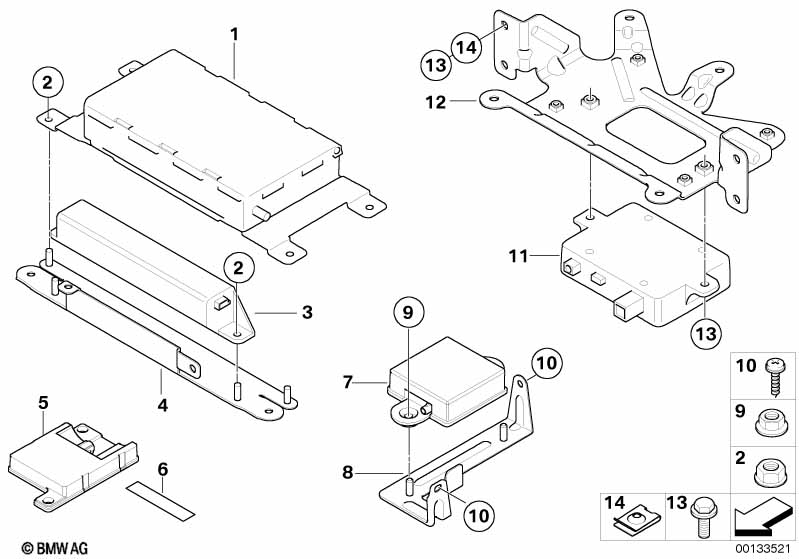

This Single parts, SA 644, trunk technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=Yes S6FLA=No S609A=Yes |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=No S6FLA=No S609A=Yes |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=No S6FLA=No S609A=No |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=Yes S609A=Yes |
|||||||||
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 03/2008 | 84109178898 | $832.54 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 09/2009 | 84109207360 | $429.43 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=No S609A=Yes |
|||||||||
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 03/2008 | 84109178898 | $832.54 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 09/2009 | 84109207360 | $429.43 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=No S609A=No |
|||||||||
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 03/2008 | 84109178898 | $832.54 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 09/2009 | 84109207360 | $429.43 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=Yes S609A=Yes |
|||||||||
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 03/2008 | 84109178898 | $832.54 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 09/2009 | 84109207360 | $429.43 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=No S609A=Yes |
|||||||||
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 03/2008 | 84109178898 | $832.54 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 09/2009 | 84109207360 | $429.43 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=No S609A=No |
|||||||||
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 03/2008 | 84109178898 | $832.54 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | BASIS SVS | 1 | 03/2007 | 09/2009 | 84109207360 | $429.43 | ENDED | Shop at ECS Tuning | |
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| 02 | Hex nut | M5 | 8 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| For vehicles with Telematics preparation |
S605A=Yes |
|||||||||
| 04 | Bracket, additional battery | 1 | 84136922528 | ENDED, +core | Shop at ECS Tuning | |||||
| 05 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| 06 | Fillister head screw | 2 | 06/2004 | 07147122392 | $0.29 | Shop at ECS Tuning | ||||
| 07 | Back-Up Antenna | 1 | 65206935024 | $29.04 | Shop at ECS Tuning | |||||
| 08 | Bracket Back-Up Antenna | 1 | 65206936693 | ENDED | Shop at ECS Tuning | |||||
| 09 | Hex nut wiht flange | M6 | 2 | 41248147832 | $0.30 | Shop at ECS Tuning | ||||
| 10 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| can be installed as an option | ||||||||||
| 11 | Dual band cable compensator | 1 | 84216932865 | $342.63 | Shop at ECS Tuning | |||||
| 12 | Bracket, satellite- radio/compensator | 1 | 65156927492 | $13.63 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M5X14 | 6 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Body nut | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
