Single parts, SA 644, trunk for BMW 1 Series E88 125i (2013)

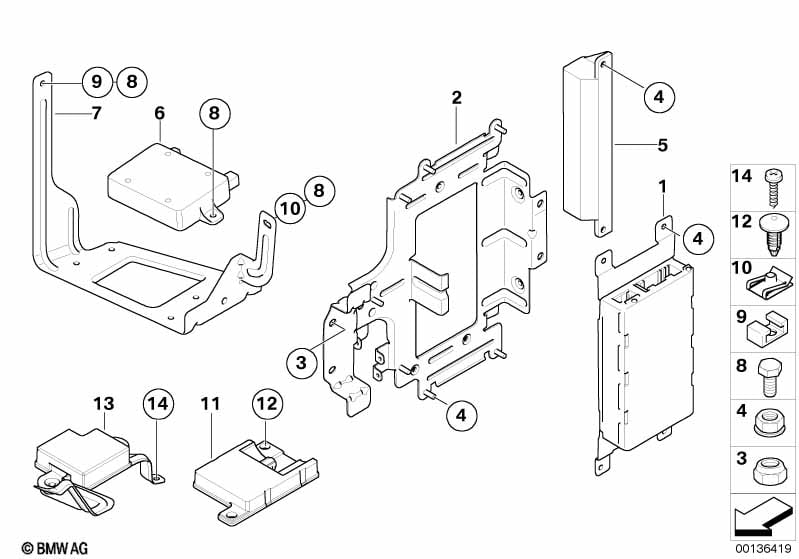

This Single parts, SA 644, trunk technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=Yes S6FLA=No S609A=Yes |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=No S6FLA=No S609A=Yes |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with Preparation f mobile phone w Bluetooth and Voice control and USB/Audio interface and Navigation system Professional |
S644A=Yes S620A=No S6FLA=No S609A=No |
|||||||||
| 01 | Charging electronics, hands-free | 1 | 03/2007 | 84109226711 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=Yes S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=No S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=Yes S620A=No S609A=No |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=Yes S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=No S609A=Yes |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional |
S6FLA=Yes S644A=No S620A=No S609A=No |
|||||||||
| 01 | ULF module, High | 1 | 03/2007 | 84109229740 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S854A=Yes S856A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S854A=No S856A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=No S620A=Yes S609A=No S854A=Yes S856A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=Yes S644A=No S620A=Yes S609A=No S854A=No S856A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=No S644A=Yes S620A=Yes S609A=No S854A=Yes S856A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version French and Language version Spanish |
S6FLA=No S644A=Yes S620A=Yes S609A=No S854A=No S856A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH FR/ES | 1 | 09/2007 | 84109229742 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No L812A=Yes L801A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No L812A=No L801A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=No S620A=Yes S609A=No L812A=Yes L801A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=Yes S644A=No S620A=Yes S609A=No L812A=No L801A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=No S644A=Yes S620A=Yes S609A=No L812A=Yes L801A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and National version England / Ireland and National version Germany |
S6FLA=No S644A=Yes S620A=Yes S609A=No L812A=No L801A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH DE/UK | 1 | 09/2007 | 84109229741 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S855A=Yes S868A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=Yes S620A=Yes S609A=No S855A=No S868A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=No S620A=Yes S609A=No S855A=Yes S868A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=Yes S644A=No S620A=Yes S609A=No S855A=No S868A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=No S644A=Yes S620A=Yes S609A=No S855A=Yes S868A=No |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| For vehicles with USB/Audio interface and Preparation f mobile phone w Bluetooth and Voice control and Navigation system Professional and Language version Italian and Language version, Dutch |
S6FLA=No S644A=Yes S620A=Yes S609A=No S855A=No S868A=Yes |
|||||||||
| 01 | ULF module, High | I-SPEECH NL/IT | 1 | 09/2007 | 84109229743 | Shop at ECS Tuning | ||||
| 02 | Bracket for telematics ctrl module/SES | 1 | 65159135687 | $16.50 | Shop at ECS Tuning | |||||
| 03 | Hex nut wiht flange | M6 | 2 | 41248147832 | $0.30 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M5 | 6 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 11 | Antenna | BLUETOOTH | 1 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | |||
| 12 | Clip, black | 2 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
| 13 | Back-Up Antenna | 1 | 65209154263 | $37.01 | Shop at ECS Tuning | |||||
| 13 | Back-Up Antenna | 1 | 65206935024 | $29.04 | Shop at ECS Tuning | |||||
| 14 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
