Single parts SA 633, trunk for BMW 7 Series E66 740Li (2008)

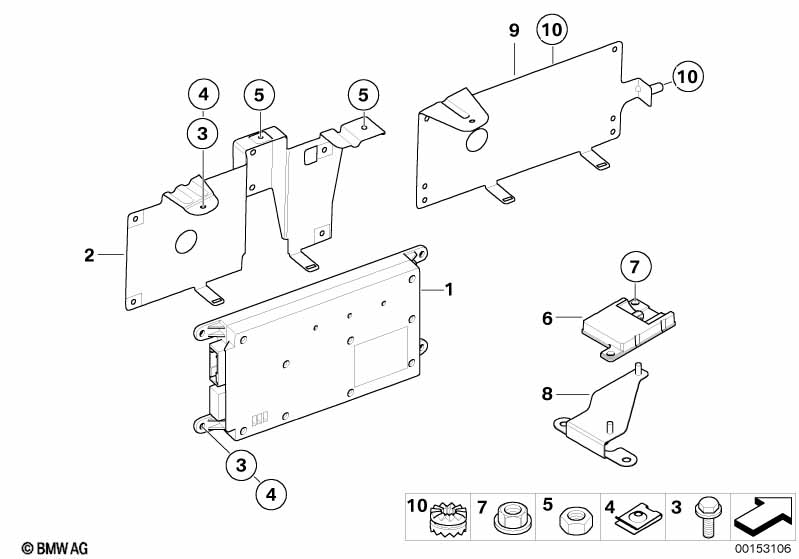

This Single parts SA 633, trunk technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Preparation, mobile phone, Business |
S633A=Yes |
||||||||
| For vehicles with Preparation, mobile phone, Business Note: Telematics control modules no longer need to be read out in the coding station. The reading out and transferring of the data is performed by the workshop tester. In future, it will also be possible to order the telematics control modules in several quantities and keep them in stock. |
S633A=Yes |
|||||||||
| 01 | RP REMAN Telematic Control Unit | GSM | 1 | 03/2007 | 84109206778 | Shop at ECS Tuning | ||||
| 02 | Bracket transmitter-receiver | 1 | 09/2005 | 84136910137 | $8.30 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M5X14 | 5 | 09/2005 | 07119902932 | $0.53 | Shop at ECS Tuning | |||
| 04 | Body nut | M5 | 5 | 09/2005 | 61131372033 | $1.37 | Shop at ECS Tuning | |||
| 05 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 09/2005 | 07119905544 | $0.64 | Shop at ECS Tuning | |||
| 06 | Antenna | BLUETOOTH | 1 | 09/2005 | 84506928461 | $24.30 | +core | Shop at ECS Tuning | ||
| 07 | Hex nut | 2 | 09/2005 | 61131372722 | $0.28 | Shop at ECS Tuning | ||||
| 08 | Bracket, Bluetooth antenna | 1 | 09/2005 | 84106950437 | $2.79 | ENDED | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 740Li Single parts SA 633, trunk?
- This technical diagram illustrates the Single parts SA 633, trunk within the Communication systems group for the 7 Series E66 740Li produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the RP REMAN Telematic Control Unit (Part #84109206778).
- Which models use the hardware listed in this Single parts SA 633, trunk?
- The hardware and components featured in the Single parts SA 633, trunk are specific to the 7 Series E66 740Li produced during 2008. These technical specifications ensure that parts like the RP REMAN Telematic Control Unit (84109206778) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts SA 633, trunk assembly?
- Each item in the Single parts SA 633, trunk corresponds to the numbered list below the illustration. For the 7 Series E66 740Li, you can identify the RP REMAN Telematic Control Unit by locating its position on the schematic, which then links to the official BMW part number 84109206778 for the Communication systems section.
