Individual parts for phone antenna for BMW 3 Series E93 LCI 330i (2013)

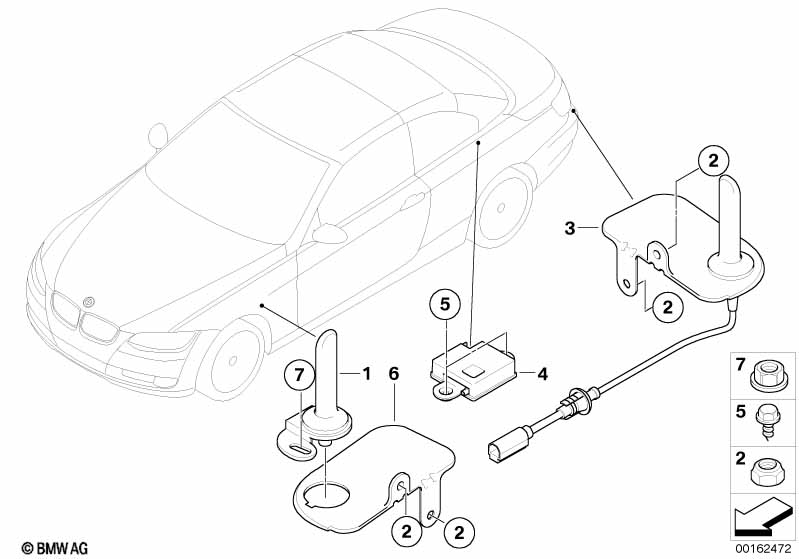

This Individual parts for phone antenna technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth or Preparation f teleph.installation Japan or Mobile phone preparation |
S633A=Yes S640A=Yes S644A=Yes S646A=Yes S664A=Yes |
|||||||||
| 01 | Antenna for phone | 1 | 65209225142 | Shop at ECS Tuning | ||||||
| 02 | Hex nut wiht flange | M6 | 3 | 41248147832 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with Preparation, mobile phone, Business or Preparation f tel.installation universal |
S633A=Yes S640A=Yes |
|||||||||
| 03 | Antenna for phone | 1 | 65209225182 | Shop at ECS Tuning | ||||||
| For vehicles with Preparation, mobile phone, Business |
S633A=Yes |
|||||||||
| 04 | Back-Up Antenna | 1 | 65206935024 | $29.04 | Shop at ECS Tuning | |||||
| 05 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
| For vehicles with Preparation, mobile phone, Business or Preparation f tel.installation universal or Preparation f mobile phone w Bluetooth or Preparation f teleph.installation Japan or Mobile phone preparation |
S633A=Yes S640A=Yes S644A=Yes S646A=Yes S664A=Yes |
|||||||||
| 06 | Antenna, phone with cradle | 1 | 65209225185 | Shop at ECS Tuning | ||||||
| 07 | Nut | M6 | 1 | 07146973709 | $0.27 | Shop at ECS Tuning | ||||
