Retrofit kit, Bluetooth control/receiver for BMW 7 Series E65 740i (2008)

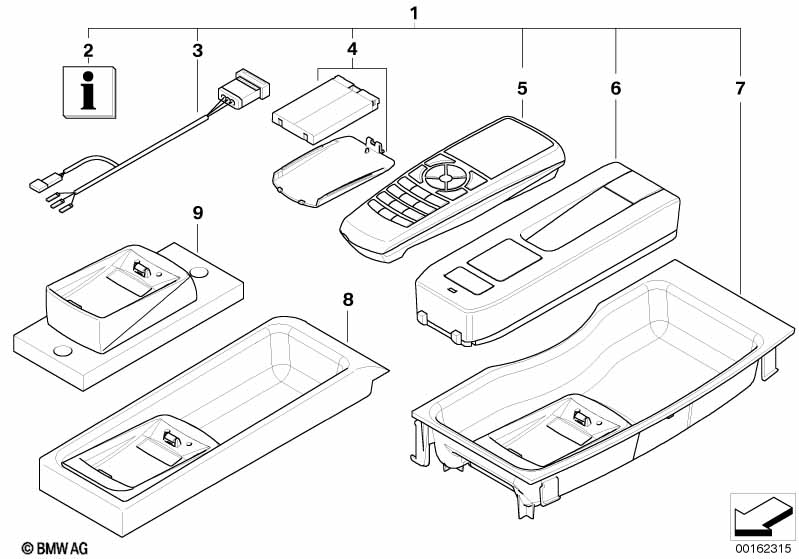

This Retrofit kit, Bluetooth control/receiver technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.

Retrofit kit, Bluetooth control/receiver
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Only for countries of the European Union
along with Switzerland and Norway
For vehicles with
Preparation, mobile phone, Business
or
Mobile phone preparation
S633A=Yes

S664A=Yes
01 Retrofit kit, Bluetooth control/receiver 1 09/2005 84640427649 ENDED Shop at ECS Tuning
02 Operating instructions BEDIENHÖRER 1 09/2005 01290427783 ENDED Shop at ECS Tuning
03 Cable harness TCU 1 09/2005 61120429597 ENDED Shop at ECS Tuning
04 Battery cover with battery MATT 1 09/2005 84109134342 Shop at ECS Tuning
05 Receiver for Bluetooth 1 09/2005 84109134694 ENDED Shop at ECS Tuning
06 Snap-in adapter, GSM 1 09/2005 84109134695 ENDED Shop at ECS Tuning
07 Drawer insert 1 09/2005 84109142814 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=Yes

S6NAA=Yes

S603A=Yes
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=Yes

S6NAA=Yes

S603A=No
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=Yes

S6NAA=No

S603A=Yes
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=No

S6NAA=Yes

S603A=Yes
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=No

S6NAA=Yes

S603A=No
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=No

S6NAA=No

S603A=Yes
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=No

S664A=Yes

S6NAA=Yes

S603A=Yes
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=No

S664A=Yes

S6NAA=Yes

S603A=No
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=No

S664A=Yes

S6NAA=No

S603A=Yes
08 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429268 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=Yes

S6NAA=No

S603A=No
09 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429981 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=Yes

S664A=No

S6NAA=No

S603A=No
09 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429981 ENDED Shop at ECS Tuning
For vehicles with
Preparation, mobile phone, Business
and
Mobile phone preparation
and
Car telephone in rear compartment
and
Rear display screen
S633A=No

S664A=Yes

S6NAA=No

S603A=No
09 Retrofit kit, cradle for receiver, rear 1 09/2005 84640429981 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
