TCB for BMW 5 Series F10 528i (2011)

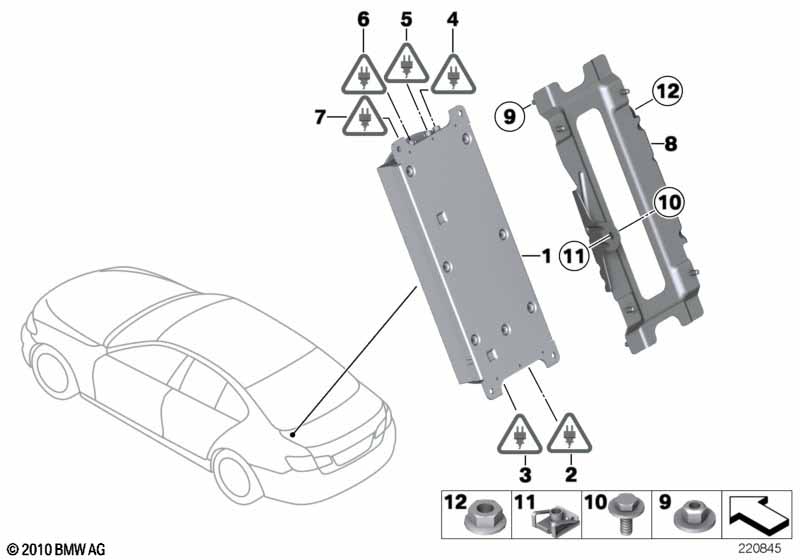

This TCB technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Control for Combox |
S6VCA=No |
||||||||
| 08 | Bracket, control unit | 1 | 65159174271 | Shop at ECS Tuning | ||||||
| 09 | Hex nut | M5 | 4 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 11 | Prestol-cage | M5 | 1 | 07147143447 | $0.73 | Shop at ECS Tuning | ||||
| 12 | Hex nut | M6-8-ZNFE SW | 2 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 528i TCB?
- This technical diagram illustrates the TCB within the Communication systems group for the 5 Series F10 528i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Bracket, control unit (Part #65159174271).
- Which models use the hardware listed in this TCB?
- The hardware and components featured in the TCB are specific to the 5 Series F10 528i produced during 2011. These technical specifications ensure that parts like the Bracket, control unit (65159174271) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the TCB assembly?
- Each item in the TCB corresponds to the numbered list below the illustration. For the 5 Series F10 528i, you can identify the Bracket, control unit by locating its position on the schematic, which then links to the official BMW part number 65159174271 for the Communication systems section.
