ULF module, High for BMW 5 Series F10 520d (2013)

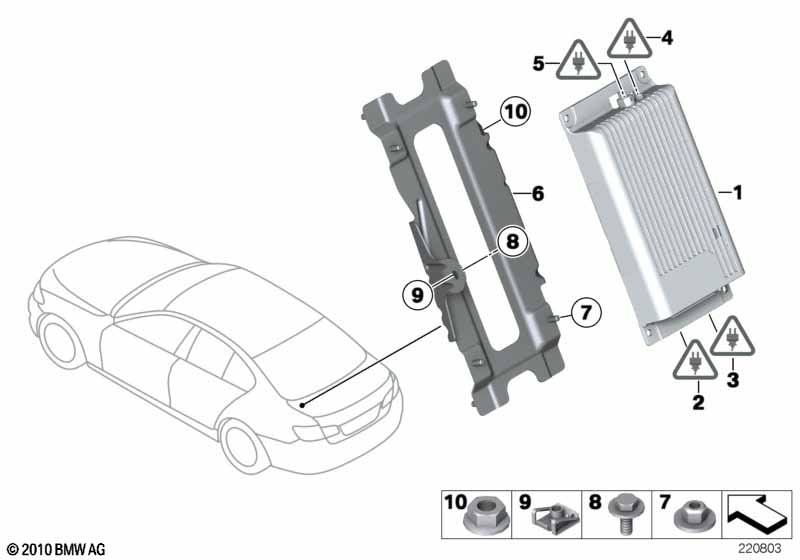

This ULF module, High technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Bracket, control unit | 1 | 65159174271 | Shop at ECS Tuning | ||||||
| 07 | Hex nut | M5 | 4 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 09 | Prestol-cage | M5 | 1 | 07147143447 | $0.73 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6-8-ZNFE SW | 4 | 07119904022 | $0.09 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 520d ULF module, High?
- This technical diagram illustrates the ULF module, High within the Communication systems group for the 5 Series F10 520d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Bracket, control unit (Part #65159174271).
- Which models use the hardware listed in this ULF module, High?
- The hardware and components featured in the ULF module, High are specific to the 5 Series F10 520d produced during 2013. These technical specifications ensure that parts like the Bracket, control unit (65159174271) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ULF module, High assembly?
- Each item in the ULF module, High corresponds to the numbered list below the illustration. For the 5 Series F10 520d, you can identify the Bracket, control unit by locating its position on the schematic, which then links to the official BMW part number 65159174271 for the Communication systems section.
