USB hub for BMW 5 Series F11 528i (2011)

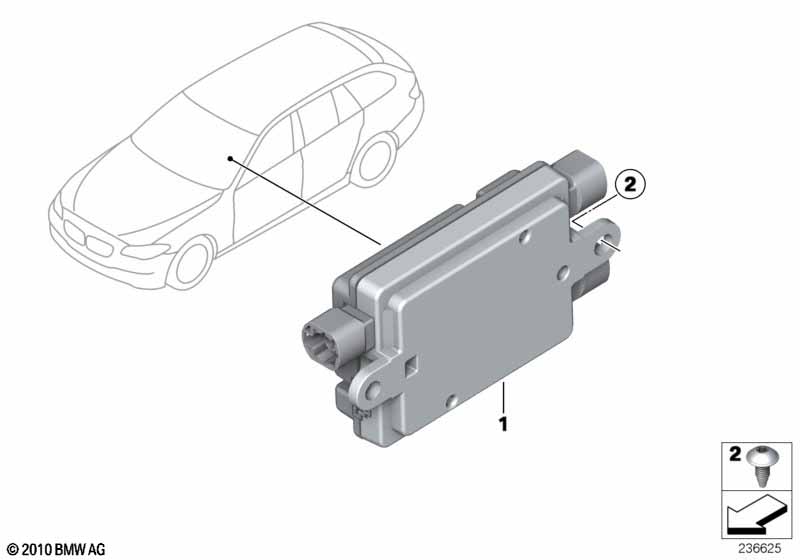

This USB hub technical drawing provides a detailed breakdown of the assembly for the 5 Series F11 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with USB/Audio interface and Control for Combox |
S6FLA=Yes S6VCA=No |
|||||||||
| 01 | USB hub | 1 | 84109200503 | Shop at ECS Tuning | ||||||
| 02 | Sheet metal screw | ISA M5X12 | 2 | 07149158177 | $0.25 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F11 528i USB hub?
- This technical diagram illustrates the USB hub within the Communication systems group for the 5 Series F11 528i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the USB hub (Part #84109200503).
- Which models use the hardware listed in this USB hub?
- The hardware and components featured in the USB hub are specific to the 5 Series F11 528i produced during 2011. These technical specifications ensure that parts like the USB hub (84109200503) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the USB hub assembly?
- Each item in the USB hub corresponds to the numbered list below the illustration. For the 5 Series F11 528i, you can identify the USB hub by locating its position on the schematic, which then links to the official BMW part number 84109200503 for the Communication systems section.
