Combox for BMW 1 Series F20 116i (2013)

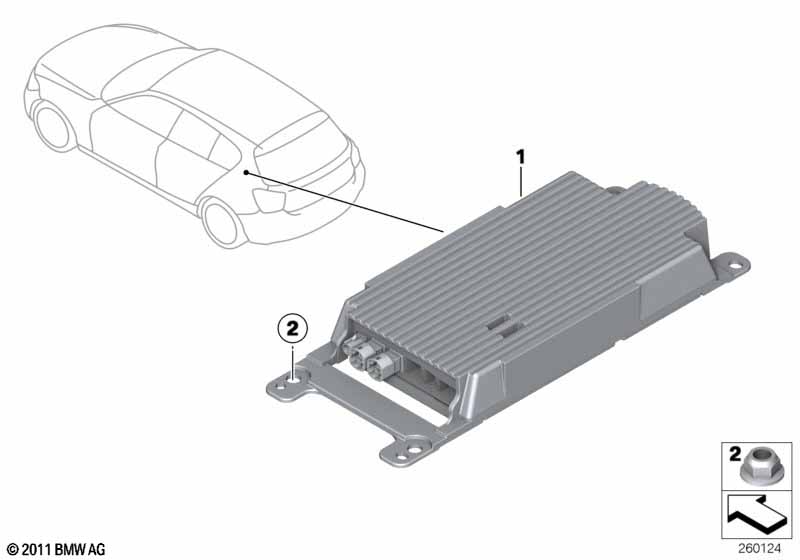

This Combox technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 116i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Navigation system Business and Navigation system Professional and Connection Bluetooth + USB devices incl. |
S606A=No S609A=No S6NLA=Yes |
|||||||||
| 01 | Combox for Telematics | GPS | 1 | 07/2013 | 84109257152 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung |
S606A=Yes S609A=Yes S6NLA=Yes S6VAA=Yes |
|||||||||
| 01 | Combox for Telematics | ECE | 1 | 07/2013 | 84109257151 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung |
S606A=Yes S609A=Yes S6NLA=Yes S6VAA=No |
|||||||||
| 01 | Combox for Telematics | ECE | 1 | 07/2013 | 84109257151 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung |
S606A=Yes S609A=No S6NLA=Yes S6VAA=Yes |
|||||||||
| 01 | Combox for Telematics | ECE | 1 | 07/2013 | 84109257151 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung |
S606A=Yes S609A=No S6NLA=Yes S6VAA=No |
|||||||||
| 01 | Combox for Telematics | ECE | 1 | 07/2013 | 84109257151 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Business and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung |
S606A=No S609A=Yes S6NLA=Yes S6VAA=Yes |
|||||||||
| 01 | Combox for Telematics | ECE | 1 | 07/2013 | 84109257151 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=Yes S6NHA=Yes S6NKA=Yes S6VAA=Yes |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=Yes S6NHA=Yes S6NKA=No S6VAA=Yes |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=Yes S6NHA=No S6NKA=Yes S6VAA=Yes |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=No S6NHA=Yes S6NKA=Yes S6VAA=Yes |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=No S6NHA=Yes S6NKA=Yes S6VAA=No |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=No S6NHA=Yes S6NKA=No S6VAA=Yes |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=No S6NHA=No S6NKA=Yes S6VAA=Yes |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Hands-free with USB interface and Link for Bluetooth and USB device and CIC-Zusteuerung |
S609A=No S6NHA=No S6NKA=Yes S6VAA=No |
|||||||||
| 01 | Combox Media | 1 | 03/2013 | 07/2013 | 84109257150 | Shop at ECS Tuning | ||||
| 02 | Hex nut | M6-8-ZNS3 | 3 | 03/2015 | 07119902751 | $0.56 | Shop at ECS Tuning | |||
| 02 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 03/2015 | 07119905949 | $0.24 | Shop at ECS Tuning | |||
