Combox for Telematics for BMW 3 Series F34 GT 328i (2015)

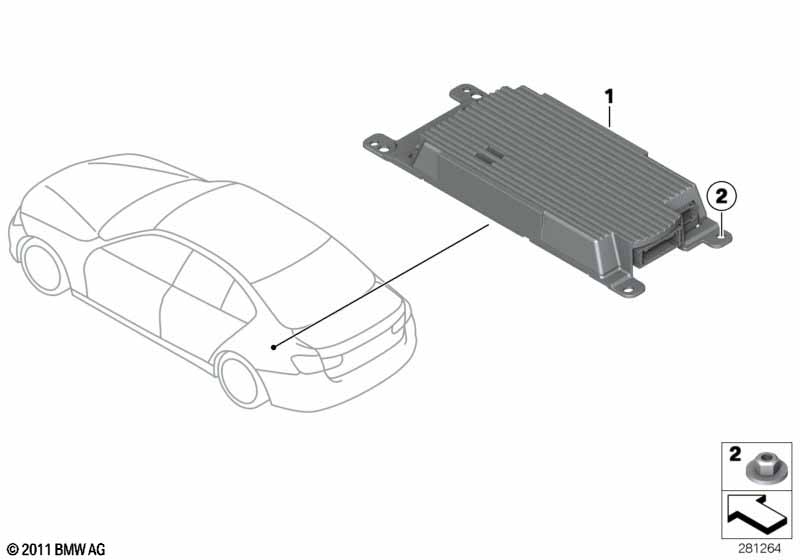

This Combox for Telematics technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Teleservices and Control for Infotainment Important! Only suitable for cars With K word UC4G Check vehicle order before ordering! |
S6AEA=Yes S6VBA=Yes |
|||||||||
| 01 | Combox next generation | 4G US GPS | 1 | 07/2015 | 84102447927 | Shop at ECS Tuning | ||||
| 02 | Hex nut | M6-8-ZNS3 | 3 | 07/2015 | 07119902751 | $0.56 | Shop at ECS Tuning | |||
| 02 | Hex nut with plate | M6-8-ZNNIV SI | 3 | 07/2015 | 07119905949 | $0.24 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F34 GT 328i Combox for Telematics?
- This technical diagram illustrates the Combox for Telematics within the Communication systems group for the 3 Series F34 GT 328i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Combox next generation (Part #84102447927).
- Which models use the hardware listed in this Combox for Telematics?
- The hardware and components featured in the Combox for Telematics are specific to the 3 Series F34 GT 328i produced during 2015. These technical specifications ensure that parts like the Combox next generation (84102447927) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Combox for Telematics assembly?
- Each item in the Combox for Telematics corresponds to the numbered list below the illustration. For the 3 Series F34 GT 328i, you can identify the Combox next generation by locating its position on the schematic, which then links to the official BMW part number 84102447927 for the Communication systems section.
