TCB for BMW 7 Series F02 LCI 740Li (2015)

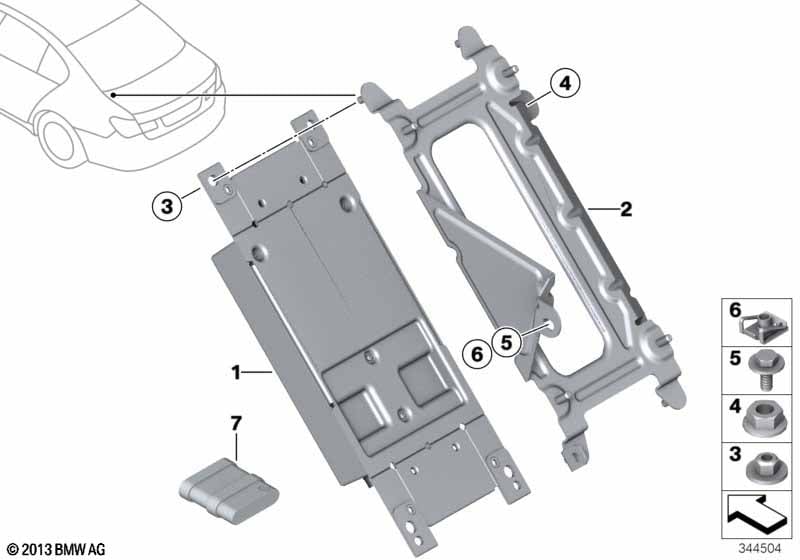

This TCB technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 LCI 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Order and installation of an encoded telematics control unit will deactivate the currently installed SIM map. ConnectedDrive and Teleservice services can then only be implemented with the new control unit. The ordered control unit does not operate in any other vehicle, only this one! |
|||||||||
| For vehicles with Convenience phone, expanded Smartphone Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
S6NSA=Yes |
|||||||||
| 01 | TCB | ECE GPS | 1 | 84109362848 | Shop at ECS Tuning | |||||
| For vehicles with National version China Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
L8AAA=Yes |
|||||||||
| 01 | TCB | CHN | 1 | 84109289387 | ENDED | Shop at ECS Tuning | ||||
| 01 | TCB | CHN GPS | 1 | 84109362850 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Providersteuerung Telematik |
S6AEA=Yes S8SXA=Yes |
|||||||||
| 01 | TCB | ROW GPS | 1 | 84109362851 | Shop at ECS Tuning | |||||
| For vehicles with TV function and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
S601A=Yes S609A=Yes S6NLA=Yes S6VAA=No |
|||||||||
| 01 | TCB | ECE VF | 1 | 84109289385 | ENDED | Shop at ECS Tuning | ||||
| 01 | TCB | ECE GPS | 1 | 84109362848 | Shop at ECS Tuning | |||||
| For vehicles with TV function and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
S601A=Yes S609A=No S6NLA=Yes S6VAA=No |
|||||||||
| 01 | TCB | ECE VF | 1 | 84109289385 | ENDED | Shop at ECS Tuning | ||||
| 01 | TCB | ECE GPS | 1 | 84109362848 | Shop at ECS Tuning | |||||
| For vehicles with TV function and Navigation system Professional and Connection Bluetooth + USB devices incl. and CIC-Zusteuerung Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
S601A=No S609A=Yes S6NLA=Yes S6VAA=No |
|||||||||
| 01 | TCB | ECE VF | 1 | 84109289385 | ENDED | Shop at ECS Tuning | ||||
| 01 | TCB | ECE GPS | 1 | 84109362848 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik |
S6AEA=Yes S8LBA=No S8LHA=No S8SXA=No |
|||||||||
| 01 | TCB | ECE GPS | 1 | 84109362848 | Shop at ECS Tuning | |||||
| 02 | Bracket, control unit | 1 | 65159153136 | Shop at ECS Tuning | ||||||
| 03 | Hex nut | M5 | 4 | 07129906048 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Hex nut | M6-8-ZNFE SW | 2 | 07119904022 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Hex bolt with washer | M6X16-U2-ZNS3 | 1 | 07119902913 | Shop at ECS Tuning | |||||
| 06 | Body nut | M6 | 1 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Battery | TPL/TCB | 1 | 84109297787 | Shop at ECS Tuning | |||||
