USB/AUX-IN socket for BMW MINI Clubman F54 Cooper (2019)

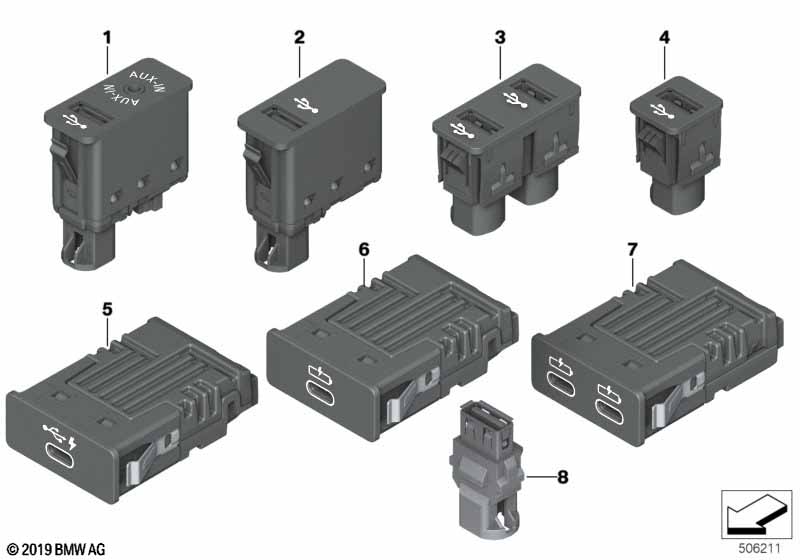

This USB/AUX-IN socket technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | USB port | LONGVERSION | 1 | 84106820397 | Shop at ECS Tuning | |||||
| For vehicles with Phoning with wireless charging |
S6NWA=Yes |
|||||||||
| 04 | USB port | QUADRATIC | 1 | 84109229294 | Shop at ECS Tuning | |||||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 07 | USB port | DUAL | 1 | 84105A84160 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Clubman F54 Cooper USB/AUX-IN socket?
- This technical diagram illustrates the USB/AUX-IN socket within the Communication systems group for the MINI Clubman F54 Cooper produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the USB port (Part #84106820397).
- Which models use the hardware listed in this USB/AUX-IN socket?
- The hardware and components featured in the USB/AUX-IN socket are specific to the MINI Clubman F54 Cooper produced during 2019. These technical specifications ensure that parts like the USB port (84106820397) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the USB/AUX-IN socket assembly?
- Each item in the USB/AUX-IN socket corresponds to the numbered list below the illustration. For the MINI Clubman F54 Cooper, you can identify the USB port by locating its position on the schematic, which then links to the official BMW part number 84106820397 for the Communication systems section.
