USB socket for BMW 2 Series F45 Active Tourer 225iX (2018)

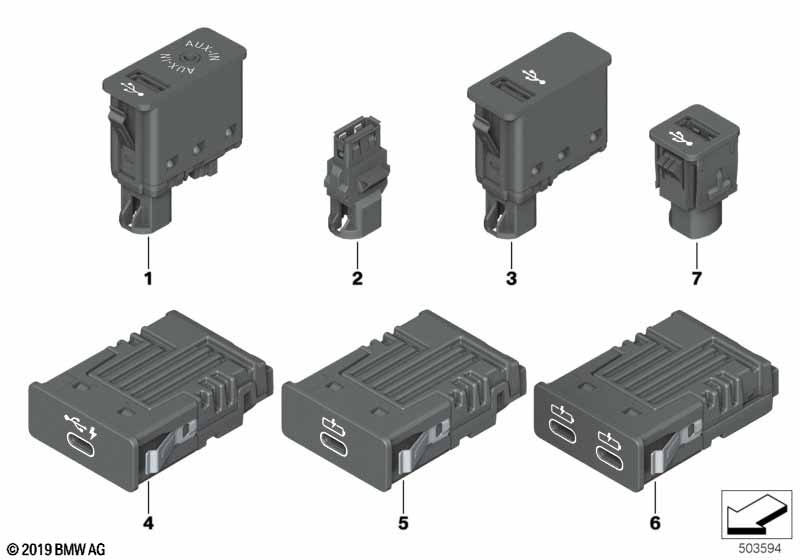

This USB socket technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 225iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Phoning with wireless charging |
S6NWA=Yes |
|||||||||
| 02 | USB adapter | 1 | 11/2016 | 84109390501 | Shop at ECS Tuning | |||||
| 03 | USB port | LONGVERSION | 1 | 07/2017 | 84106820397 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F45 Active Tourer 225iX USB socket?
- This technical diagram illustrates the USB socket within the Communication systems group for the 2 Series F45 Active Tourer 225iX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the USB adapter (Part #84109390501).
- Which models use the hardware listed in this USB socket?
- The hardware and components featured in the USB socket are specific to the 2 Series F45 Active Tourer 225iX produced during 2018. These technical specifications ensure that parts like the USB adapter (84109390501) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the USB socket assembly?
- Each item in the USB socket corresponds to the numbered list below the illustration. For the 2 Series F45 Active Tourer 225iX, you can identify the USB adapter by locating its position on the schematic, which then links to the official BMW part number 84109390501 for the Communication systems section.
