TCB for BMW 6 Series G32 GT 630iX (2020)

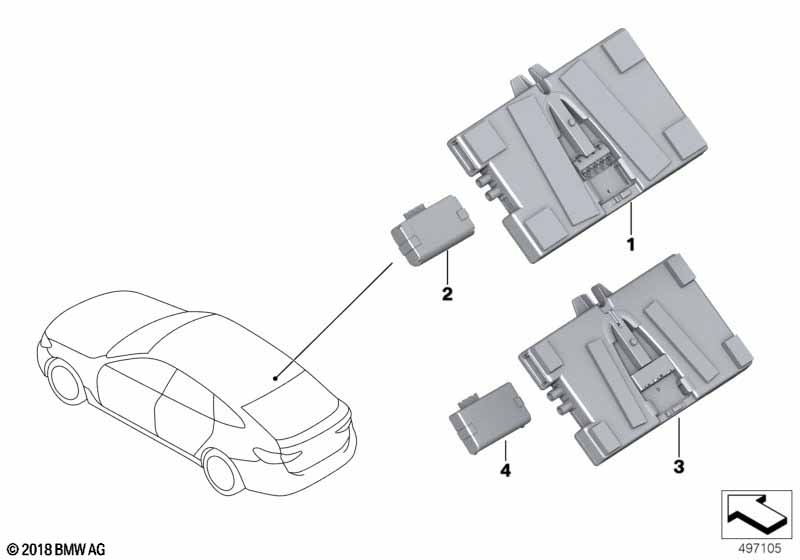

This TCB technical drawing provides a detailed breakdown of the assembly for the 6 Series G32 GT 630iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version China and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Russia 10323 and Providersteuerung Telematik |
L8AAA=No S8LBA=No S8LHA=No S8LRA=No S8SXA=No |
||||||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional and Country-specific equipment Turkey 01626 and Country control for Mexico 10360 Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
S6AEA=Yes S6AFA=Yes S6U3A=Yes S8LCA=No S8LMA=No |
|||||||||
| 03 | TCB3 | 4G ECE | 1 | 07/2019 | 84105A59D27 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional and Country-specific equipment Turkey 01626 and Country control for Mexico 10360 Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
S6AEA=Yes S6AFA=No S6U3A=Yes S8LCA=No S8LMA=No |
|||||||||
| 03 | TCB3 | 4G ECE | 1 | 07/2019 | 84105A59D27 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional and Country-specific equipment Turkey 01626 and Country control for Mexico 10360 Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
S6AEA=No S6AFA=Yes S6U3A=Yes S8LCA=No S8LMA=No |
|||||||||
| 03 | TCB3 | 4G ECE | 1 | 07/2019 | 84105A59D27 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Teleservices and Statutory emergency request and Country-spec.ctrl Hong Kong/Macao 04142 and Country control for Mexico 10360 and Providersteuerung Telematik Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
L8AAA=No S6AEA=Yes S6AFA=Yes S8LHA=No S8LMA=No S8SXA=No |
|||||||||
| 03 | TCB3 | 4G ECE | 1 | 07/2019 | 84105A59D27 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Teleservices and Statutory emergency request and Country-spec.ctrl Hong Kong/Macao 04142 and Country control for Mexico 10360 and Providersteuerung Telematik Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
L8AAA=No S6AEA=Yes S6AFA=No S8LHA=No S8LMA=No S8SXA=No |
|||||||||
| 03 | TCB3 | 4G ECE | 1 | 07/2019 | 84105A59D27 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Teleservices and Statutory emergency request and Country-spec.ctrl Hong Kong/Macao 04142 and Country control for Mexico 10360 and Providersteuerung Telematik Important notice! The battery is not included in the telematics communications box and must be ordered separately as required! |
L8AAA=No S6AEA=No S6AFA=Yes S8LHA=No S8LMA=No S8SXA=No |
|||||||||
| 03 | TCB3 | 4G ECE | 1 | 07/2019 | 84105A59D27 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional Note Repair Manual |
S6AEA=Yes S6AFA=Yes S6U3A=Yes |
|||||||||
| 04 | Battery | TCB3 DACH/GPR | 1 | 07/2019 | 84106833994 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional Note Repair Manual |
S6AEA=Yes S6AFA=No S6U3A=Yes |
|||||||||
| 04 | Battery | TCB3 DACH/GPR | 1 | 07/2019 | 84106833994 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and BMW Live dashboard Professional Note Repair Manual |
S6AEA=No S6AFA=Yes S6U3A=Yes |
|||||||||
| 04 | Battery | TCB3 DACH/GPR | 1 | 07/2019 | 84106833994 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series G32 GT 630iX TCB?
- This technical diagram illustrates the TCB within the Communication systems group for the 6 Series G32 GT 630iX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the TCB3 (Part #84105A59D27).
- Which models use the hardware listed in this TCB?
- The hardware and components featured in the TCB are specific to the 6 Series G32 GT 630iX produced during 2020. These technical specifications ensure that parts like the TCB3 (84105A59D27) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the TCB assembly?
- Each item in the TCB corresponds to the numbered list below the illustration. For the 6 Series G32 GT 630iX, you can identify the TCB3 by locating its position on the schematic, which then links to the official BMW part number 84105A59D27 for the Communication systems section.
