TCB for BMW 2 Series F45 Active Tourer 220d (2018)

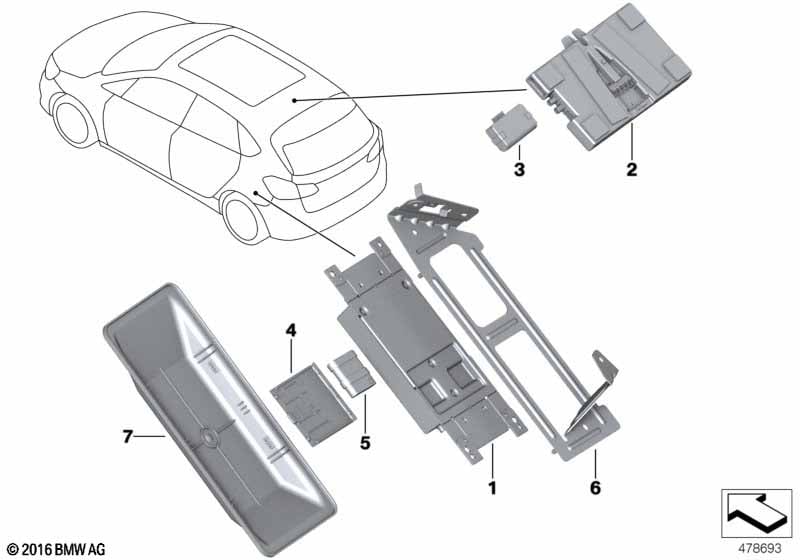

This TCB technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer 220d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! Order and installation of an encoded telematics control unit will deactivate the currently installed SIM map. ConnectedDrive and Teleservice services can then only be implemented with the new control unit. The ordered control unit does not operate in any other vehicle, only this one! See PuMA measure 62720112 |
|||||||||
| For vehicles with Teleservices and Statutory emergency request and Country-specific equipment Russia 10323 |
S6AEA=Yes S6AFA=Yes S8LRA=Yes |
|||||||||
| 02 | TCB2 | 4G RU | 1 | 07/2017 | 84109843934 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Country control for Brazil 00464 and Country-specific equipment Russia 10323 and Providersteuerung Telematik |
S6AEA=Yes S8LBA=Yes S8LRA=No S8SXA=Yes |
|||||||||
| 02 | TCB2 | 4G ROW | 1 | 07/2017 | 84109843933 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Statutory emergency request and Convenience phone, expanded Smartphone and Country-specific equipment Russia 10323 |
S609A=Yes S6AFA=Yes S6NSA=Yes S8LRA=Yes |
|||||||||
| 02 | TCB2 | 4G RU | 1 | 07/2016 | 84109843934 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and WLAN Hotspot and Country-specific equipment Russia 10323 |
S6AEA=Yes S6AFA=No S6WDA=Yes S8LRA=Yes |
|||||||||
| 02 | TCB2 | 4G ECE WLAN | 1 | 07/2017 | 84109843935 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and WLAN Hotspot and Country-specific equipment Russia 10323 |
S6AEA=Yes S6AFA=No S6WDA=No S8LRA=Yes |
|||||||||
| 02 | TCB2 | 4G ECE | 1 | 07/2017 | 84109843930 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and Navigation system Professional and Teleservices and Statutory emergency request and Convenience phone, expanded Smartphone |
L802A=Yes S609A=Yes S6AEA=Yes S6AFA=Yes S6NSA=Yes |
|||||||||
| 02 | TCB2 | 4G ECE | 1 | 07/2015 | 84109843930 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Navigation system Professional and Teleservices and Statutory emergency request and Convenience phone, expanded Smartphone |
L807A=Yes S609A=Yes S6AEA=Yes S6AFA=Yes S6NSA=Yes |
|||||||||
| 02 | TCB2 | 4G ROW | 1 | 07/2015 | 84109843933 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Teleservices and Statutory emergency request and WLAN Hotspot and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=Yes S6AEA=Yes S6AFA=Yes S6WDA=No S8LHA=Yes |
|||||||||
| 02 | TCB2 | 4G CHN | 1 | 07/2017 | 84109843932 | Shop at ECS Tuning | ||||
| 02 | TCB2 | 4G CHN | 1 | 07/2017 | 84105B34283 | Shop at ECS Tuning | ||||
| For vehicles with National version China and Teleservices and Statutory emergency request and WLAN Hotspot and Country-spec.ctrl Hong Kong/Macao 04142 |
L8AAA=Yes S6AEA=Yes S6AFA=Yes S6WDA=Yes S8LHA=Yes |
|||||||||
| 02 | TCB2 | 4G CHN WLAN | 1 | 07/2017 | 84109843937 | Shop at ECS Tuning | ||||
| 02 | TCB2 | 4G CHN WLAN | 1 | 07/2017 | 84105B34284 | Shop at ECS Tuning | ||||
| For vehicles with Navigation system Professional and Teleservices and Statutory emergency request and Convenience phone, expanded Smartphone and Country-specific equipment Russia 10323 |
S609A=Yes S6AEA=Yes S6AFA=No S6NSA=Yes S8LRA=Yes |
|||||||||
| 02 | TCB2 | 4G ECE | 1 | 07/2016 | 84109843930 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Country-specific equipment Russia 10323 Caution: modified repair instructions Note Repair Manual |
S6AEA=Yes S6AFA=Yes S8LRA=Yes |
|||||||||
| 03 | Battery | TCB DACH | 1 | 07/2016 | 84102447710 | Shop at ECS Tuning | ||||
| For vehicles with National version Korea and National version japan and Teleservices and Statutory emergency request Caution: modified repair instructions Note Repair Manual |
L802A=Yes L807A=Yes S6AEA=Yes S6AFA=Yes |
|||||||||
| 03 | Battery | TCB DACH | 1 | 07/2015 | 84102447710 | Shop at ECS Tuning | ||||
| For vehicles with National version japan and Teleservices and Statutory emergency request and Country-specific equipment Russia 10323 Caution: modified repair instructions Note Repair Manual |
L807A=No S6AEA=Yes S6AFA=Yes S8LRA=No |
|||||||||
| 03 | Battery | TCB DACH | 1 | 07/2017 | 84102447710 | Shop at ECS Tuning | ||||
