Single parts f Cordless hands-free fac. for BMW 5 Series E39 528i (2000)

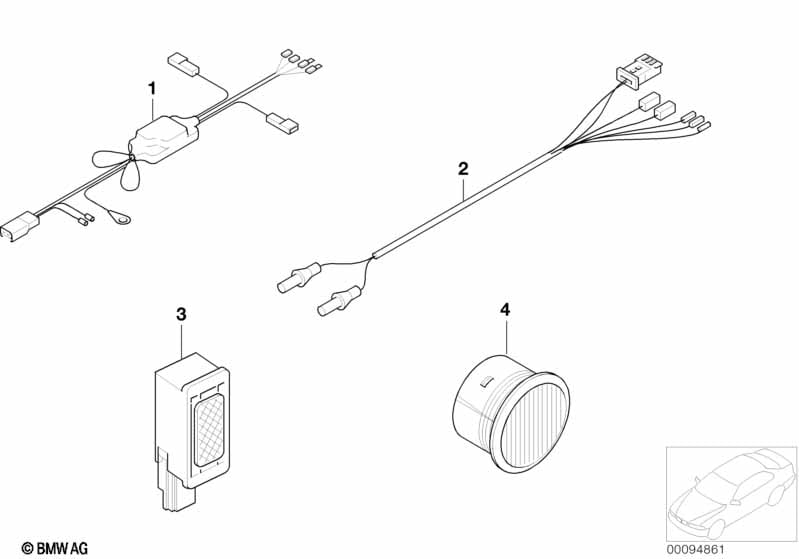

This Single parts f Cordless hands-free fac. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single parts f Cordless hands-free fac.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Navigation system Professional
S609A=Yes
01 Changeover module 1 09/1998 09/2001 82890003939 ENDED Shop at ECS Tuning
only in conjunction with
-- Adapter lead 1 09/1998 09/2001 84329408860 $32.36 ENDED, +core Shop at ECS Tuning
For vehicles with
Radio BMW Reverse (C42)
or
Radio BMW Business (C43)
or
Radio BMW Professional
S660A=Yes

S661A=Yes

S663A=Yes
01 Changeover module 1 09/1998 09/2000 82890003939 ENDED Shop at ECS Tuning
For vehicles with
Navigation system Professional
S609A=Yes
02 Audio wiring harness 1 09/2001 84640133686 ENDED Shop at ECS Tuning
03 Hands free telephone microphone NETZ GMS/PCN 1 84318380319 $94.75 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
