Antenna line, telephone for BMW 5 Series E39 525i (2003)

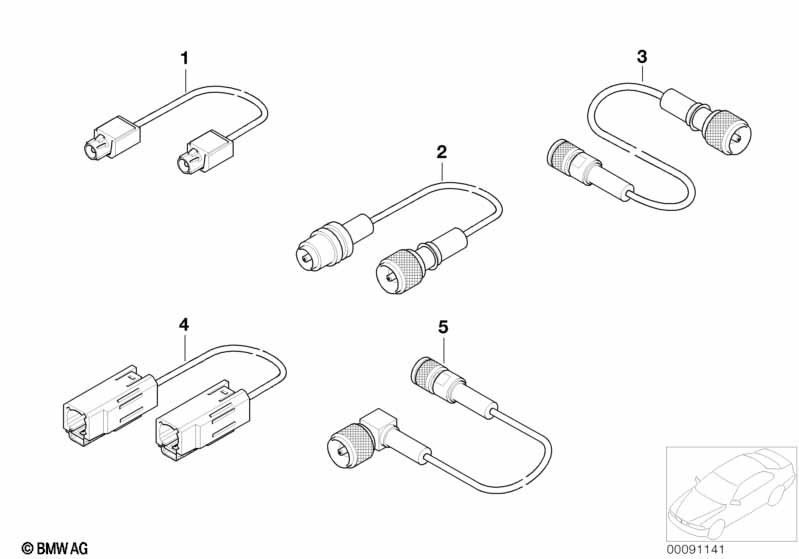

This Antenna line, telephone technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Antenna line, telephone
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Car phone with cordless receiver
Centre console
S630A=Yes
01 Antenna cable Ejectbox FAKRA/MINI UHF 1 84320027140 $14.20 ENDED Shop at ECS Tuning
For vehicles with
Car phone with cordless receiver
Luggage compartment
S630A=Yes
01 Antenna cable FAKRA/MINI UHF 1 84320143621 $16.35 ENDED Shop at ECS Tuning
For vehicles with
Preparation BMW Handy (Motorola)
Centre console
S632A=Yes
01 Antenna cable Ejectbox FAKRA/MINI UHF 1 84320027141 $14.63 ENDED Shop at ECS Tuning
01 Antenna cable Ejectbox FAKRA/MINI UHF 1 84320145836 ENDED Shop at ECS Tuning
For vehicles with
Preparation BMW Handy (Motorola)
Luggage compartment
S632A=Yes
01 Antenna cable antenna regulator FAKRA/MINI UHF 1 84320029426 $8.05 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
