USB separate components for BMW 8 Series G15 Coupé M850iX (2025)

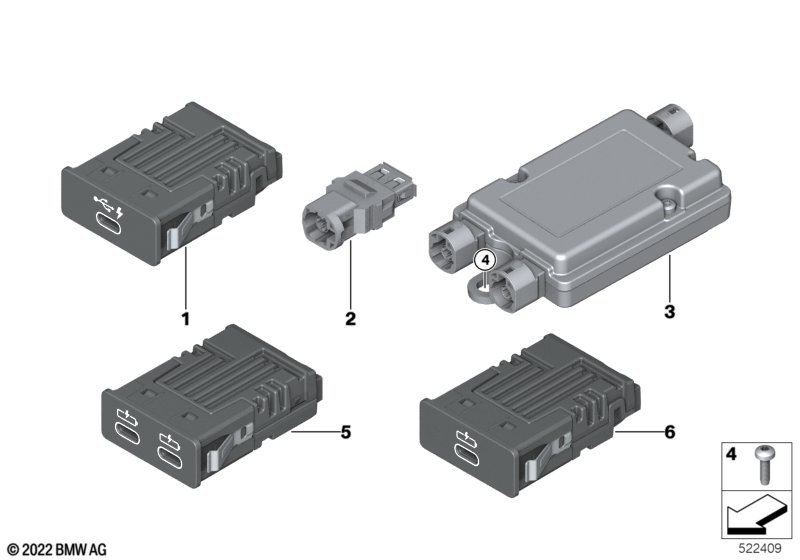

This USB separate components technical drawing provides a detailed breakdown of the assembly for the 8 Series G15 Coupé M850iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | USB port | ACTIVE | 1 | 84108711939 | Shop at ECS Tuning | |||||
| Cup holder | ||||||||||
| 02 | USB adapter | 1 | 84109390501 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Navigation system Professional and Preparation external CD drive |
L807A=Yes S609A=Yes S65AA=Yes |
|||||||||
| 03 | USB hub | 1 | 84109355549 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Navigation system Professional and Preparation external CD drive |
L807A=Yes S609A=Yes S65AA=No |
|||||||||
| 03 | USB hub | 1 | 84109355549 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Navigation system Professional and Preparation external CD drive |
L807A=No S609A=Yes S65AA=Yes |
|||||||||
| 03 | USB hub | 1 | 84109355549 | Shop at ECS Tuning | ||||||
| For vehicles with National version japan and Navigation system Professional and Preparation external CD drive |
L807A=Yes S609A=Yes S65AA=Yes |
|||||||||
| 04 | Oval-head screw, self-tapping | M6X20 | 2 | 07149129752 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Navigation system Professional and Preparation external CD drive |
L807A=Yes S609A=Yes S65AA=No |
|||||||||
| 04 | Oval-head screw, self-tapping | M6X20 | 2 | 07149129752 | Shop at ECS Tuning | |||||
| For vehicles with National version japan and Navigation system Professional and Preparation external CD drive |
L807A=No S609A=Yes S65AA=Yes |
|||||||||
| 04 | Oval-head screw, self-tapping | M6X20 | 2 | 07149129752 | Shop at ECS Tuning | |||||
| Center console storage compartment | ||||||||||
| 06 | USB socket | SINGLE | 1 | 84108711940 | ENDED | Shop at ECS Tuning | ||||
| 06 | USB port | SINGLE | 1 | 84105B51C70 | NoS | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
