USB separate components for BMW 3 Series G20 Sedan 330e (2022)

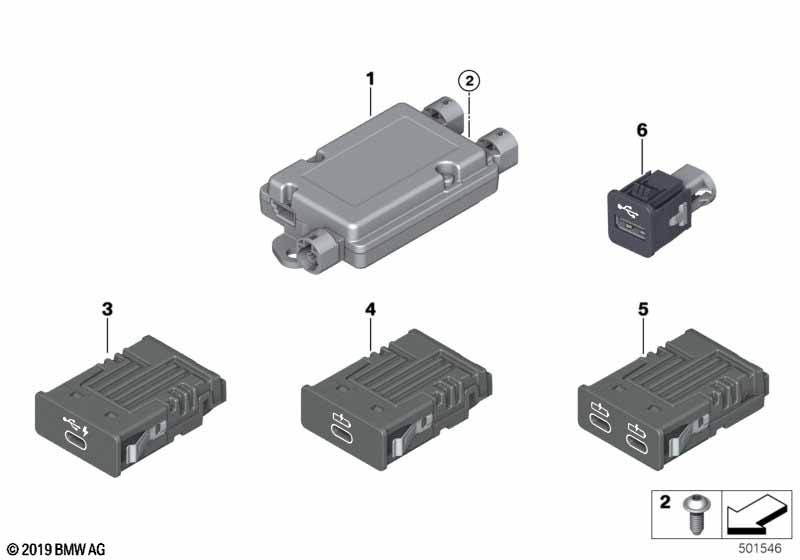

This USB separate components technical drawing provides a detailed breakdown of the assembly for the 3 Series G20 Sedan 330e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Navigation system Professional and Preparation external CD drive and BMW Live dashboard Plus and BMW Live dashboard Professional |
S609A=Yes S65AA=Yes S6U2A=Yes S6U3A=No |
|||||||||
| 01 | USB hub | 1 | 84109355549 | Shop at ECS Tuning | ||||||
| For vehicles with Navigation system Professional and Preparation external CD drive and BMW Live dashboard Plus and BMW Live dashboard Professional |
S609A=Yes S65AA=Yes S6U2A=No S6U3A=No |
|||||||||
| 01 | USB hub | 1 | 84109355549 | Shop at ECS Tuning | ||||||
| For vehicles with Navigation system Professional and Preparation external CD drive and BMW Live dashboard Plus and BMW Live dashboard Professional |
S609A=No S65AA=Yes S6U2A=Yes S6U3A=No |
|||||||||
| 01 | USB hub | 1 | 84109355549 | Shop at ECS Tuning | ||||||
| For vehicles with Preparation external CD drive and BMW Live dashboard Plus |
S65AA=Yes S6U2A=Yes |
|||||||||
| 02 | Screw | TS 5X12 | 2 | 07129908078 | Shop at ECS Tuning | |||||
| For vehicles with Deletion data function USB-C and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6P2A=No S6U2A=Yes S6U3A=Yes |
|||||||||
| 03 | USB port | ACTIVE | 1 | 04/2022 | 84108711939 | Shop at ECS Tuning | ||||
| For vehicles with Deletion data function USB-C and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6P2A=No S6U2A=Yes S6U3A=No |
|||||||||
| 03 | USB port | ACTIVE | 1 | 04/2022 | 84108711939 | Shop at ECS Tuning | ||||
| For vehicles with Deletion data function USB-C and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6P2A=No S6U2A=No S6U3A=Yes |
|||||||||
| 03 | USB port | ACTIVE | 1 | 04/2022 | 84108711939 | Shop at ECS Tuning | ||||
| For vehicles with Deletion data function USB-C and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6P2A=Yes S6U2A=Yes S6U3A=Yes |
|||||||||
| 04 | USB socket | SINGLE | 1 | 04/2022 | 84108711940 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Deletion data function USB-C and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6P2A=Yes S6U2A=Yes S6U3A=No |
|||||||||
| 04 | USB socket | SINGLE | 1 | 04/2022 | 84108711940 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Deletion data function USB-C and BMW Live dashboard Plus and BMW Live dashboard Professional |
S6P2A=Yes S6U2A=No S6U3A=Yes |
|||||||||
| 04 | USB socket | SINGLE | 1 | 04/2022 | 84108711940 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Storage compartment package |
S493A=Yes |
|||||||||
| 05 | USB port | DUAL | 1 | 84105A84160 | NoS | Shop at ECS Tuning | ||||
| Cup holder | ||||||||||
| 06 | USB port | QUADRATIC | 1 | 84109229294 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
