TCB for BMW 3 Series F34 GT 328i (2016)

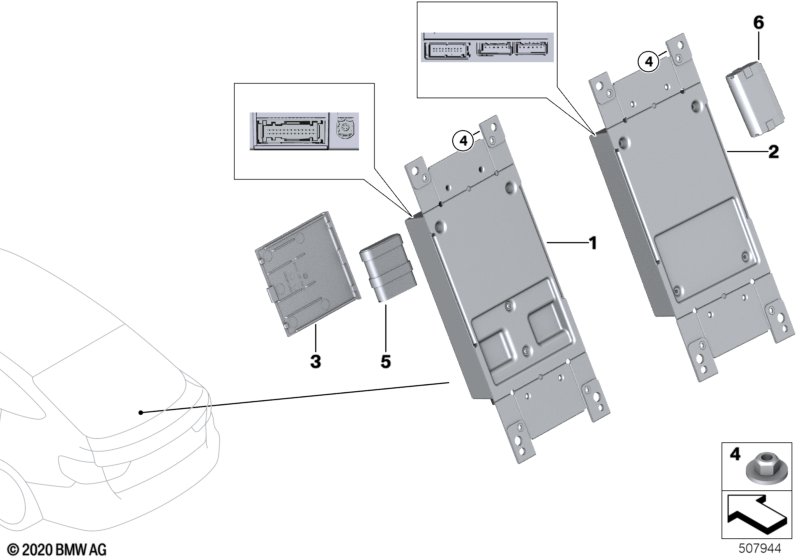

This TCB technical drawing provides a detailed breakdown of the assembly for the 3 Series F34 GT 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.

TCB
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Attention: Battery is not a constituent
of the
telematics control module and must
be ordered separately, if necessary!
Order and installation of an encoded
telematics control unit will deactivate
the currently installed SIM map.
ConnectedDrive and Teleservice services
can then only be implemented with the
new control unit.
The ordered control unit does not
operate in any other vehicle,
only this one!
See PuMA measure 62720112
For vehicles with
National version China
and
Teleservices
and
Country-spec.ctrl Hong Kong/Macao 04142
and
Country-specific equipment Russia 10323
and
Providersteuerung Telematik














L8AAA=No

S6AEA=Yes

S8LHA=No

S8LRA=No

S8SXA=Yes
For vehicles with
National version China
and
CCC allocation
and
Country control for Brazil 00464
and
Country-spec.ctrl Hong Kong/Macao 04142
L8AAA=No

S6VBA=No

S8LBA=No

S8LHA=No
01 TCB ROW GPS 1 07/2015 07/2016 84109362851 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Country control for Brazil 00464
and
Providersteuerung Telematik
S601A=Yes

S609A=Yes

S6AEA=Yes

S6NSA=No

S8LBA=No

S8SXA=Yes
02 TCB2 3G ROW GPR 1 07/2015 07/2016 84106836773 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Country control for Brazil 00464
and
Providersteuerung Telematik
S601A=Yes

S609A=No

S6AEA=Yes

S6NSA=No

S8LBA=No

S8SXA=Yes
02 TCB2 3G ROW GPR 1 07/2015 07/2016 84106836773 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Country control for Brazil 00464
and
Providersteuerung Telematik
S601A=No

S609A=Yes

S6AEA=Yes

S6NSA=No

S8LBA=No

S8SXA=Yes
02 TCB2 3G ROW GPR 1 07/2015 07/2016 84106836773 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Country control for Brazil 00464
and
Providersteuerung Telematik
S601A=Yes

S609A=Yes

S6AEA=Yes

S6NSA=Yes

S8LBA=No

S8SXA=Yes
02 TCB2 ROW 4G GPR 1 07/2015 07/2016 84109380158 ENDED Shop at ECS Tuning
02 TCB2 4G ROW GPR 1 07/2015 84105A0FC25 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Country control for Brazil 00464
and
Providersteuerung Telematik
S601A=Yes

S609A=No

S6AEA=Yes

S6NSA=Yes

S8LBA=No

S8SXA=Yes
02 TCB2 ROW 4G GPR 1 07/2015 07/2016 84109380158 ENDED Shop at ECS Tuning
02 TCB2 4G ROW GPR 1 07/2015 84105A0FC25 Shop at ECS Tuning
For vehicles with
TV function
and
Navigation system Professional
and
Teleservices
and
Convenience phone, expanded Smartphone
and
Country control for Brazil 00464
and
Providersteuerung Telematik
S601A=No

S609A=Yes

S6AEA=Yes

S6NSA=Yes

S8LBA=No

S8SXA=Yes
02 TCB2 ROW 4G GPR 1 07/2015 07/2016 84109380158 ENDED Shop at ECS Tuning
02 TCB2 4G ROW GPR 1 07/2015 84105A0FC25 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=Yes

S6AFA=Yes
03 Equipment holder cover TCB 1 07/2015 84109267244 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=Yes

S6AFA=No
03 Equipment holder cover TCB 1 07/2015 84109267244 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=No

S6AFA=Yes
03 Equipment holder cover TCB 1 07/2015 84109267244 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=Yes

S6AFA=Yes
04 Hex nut M5 4 07/2015 07129906048 $0.73 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=Yes

S6AFA=No
04 Hex nut M5 4 07/2015 07129906048 $0.73 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=No

S6AFA=Yes
04 Hex nut M5 4 07/2015 07129906048 $0.73 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=Yes

S6AFA=Yes
05 Battery TPL/TCB 1 07/2015 84109297787 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=Yes

S6AFA=No
05 Battery TPL/TCB 1 07/2015 84109297787 Shop at ECS Tuning
For vehicles with
Teleservices
and
Statutory emergency request
S6AEA=No

S6AFA=Yes
05 Battery TPL/TCB 1 07/2015 84109297787 Shop at ECS Tuning
Note Repair Manual
06 Battery TCB DACH 1 84102447710 Shop at ECS Tuning
Notes
