TCB for BMW 1 Series F20 LCI 118d (2016)

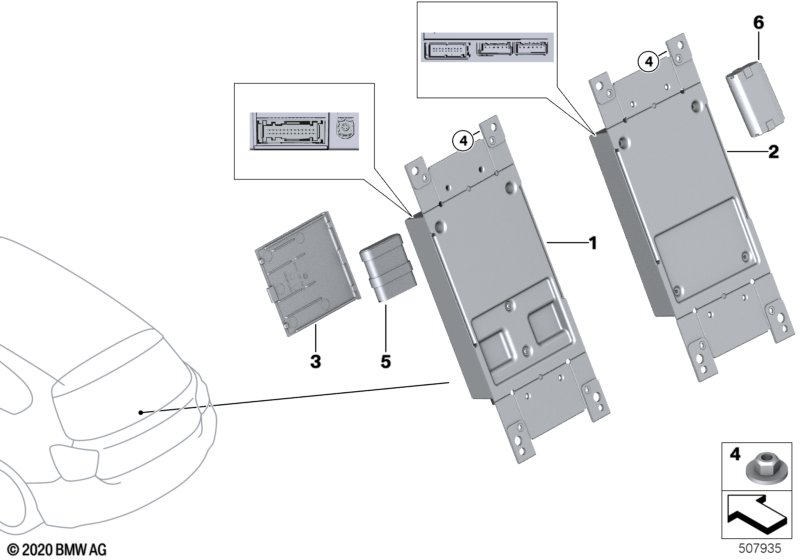

This TCB technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 LCI 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! Order and installation of an encoded telematics control unit will deactivate the currently installed SIM map. ConnectedDrive and Teleservice services can then only be implemented with the new control unit. The ordered control unit does not operate in any other vehicle, only this one! See PuMA measure 62720112 For vehicles with National version China and Country control for Brazil 00464 and Country-spec.ctrl Hong Kong/Macao 04142 and Country-specific equipment Russia 10323 and Providersteuerung Telematik |
L8AAA=No S8LBA=No S8LHA=No S8LRA=No S8SXA=No |
||||||||
| 01 | TCB | ECE GPS | 1 | 03/2015 | 07/2017 | 84109362848 | Shop at ECS Tuning | |||
| 02 | TCB2 | 4G ECE GPR | 1 | 03/2015 | 84105A0FC22 | Shop at ECS Tuning | ||||
| 02 | TCB2 | 3G ECE GPR | 1 | 03/2015 | 07/2017 | 84106836771 | Shop at ECS Tuning | |||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 03 | Equipment holder cover | TCB | 1 | 07/2015 | 84109267244 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
|||||||||
| 03 | Equipment holder cover | TCB | 1 | 07/2015 | 84109267244 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
|||||||||
| 03 | Equipment holder cover | TCB | 1 | 07/2015 | 84109267244 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 04 | Hex nut | M5 | 4 | 07/2015 | 07129906048 | $0.73 | Shop at ECS Tuning | |||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=Yes S6AFA=No |
|||||||||
| 04 | Hex nut | M5 | 4 | 07/2015 | 07129906048 | $0.73 | Shop at ECS Tuning | |||
| For vehicles with Teleservices and Statutory emergency request |
S6AEA=No S6AFA=Yes |
|||||||||
| 04 | Hex nut | M5 | 4 | 07/2015 | 07129906048 | $0.73 | Shop at ECS Tuning | |||
| For vehicles with Teleservices and Statutory emergency request ATM/TCB GPR cargo area |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 05 | Battery | TPL/TCB | 1 | 84109297787 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request ATM/TCB GPR cargo area |
S6AEA=Yes S6AFA=No |
|||||||||
| 05 | Battery | TPL/TCB | 1 | 84109297787 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request ATM/TCB GPR cargo area |
S6AEA=No S6AFA=Yes |
|||||||||
| 05 | Battery | TPL/TCB | 1 | 84109297787 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request Note Repair Manual |
S6AEA=Yes S6AFA=Yes |
|||||||||
| 06 | Battery | TCB DACH | 1 | 84102447710 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request Note Repair Manual |
S6AEA=Yes S6AFA=No |
|||||||||
| 06 | Battery | TCB DACH | 1 | 84102447710 | Shop at ECS Tuning | |||||
| For vehicles with Teleservices and Statutory emergency request Note Repair Manual |
S6AEA=No S6AFA=Yes |
|||||||||
| 06 | Battery | TCB DACH | 1 | 84102447710 | Shop at ECS Tuning | |||||
