Telematic Communication Box 4 for BMW XM G09 XM (2025)

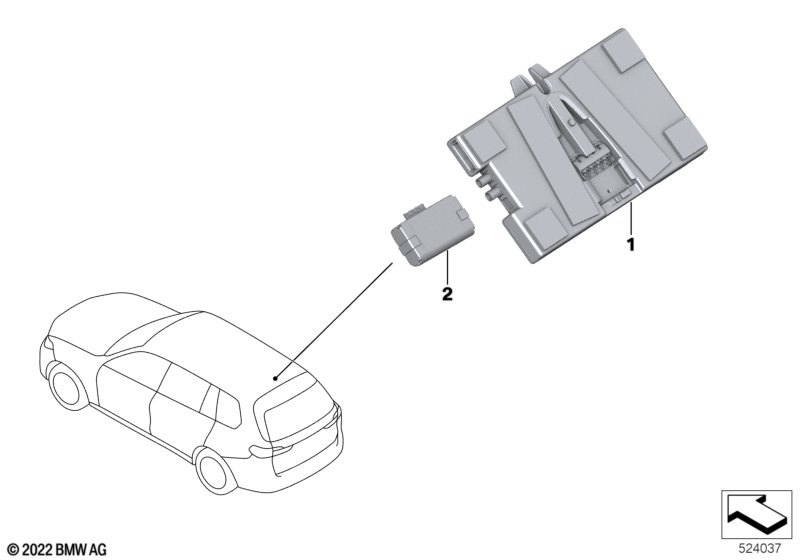

This Telematic Communication Box 4 technical drawing provides a detailed breakdown of the assembly for the XM G09 XM. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Highway assistant |
S5AXA=Yes |
|||||||||
| 01 | Telematic Communication Box 4 | 5G US HAF W11H | 1 | 04/2023 | 84105A449A8 | Shop at ECS Tuning | ||||
| For vehicles with Highway assistant and Personal eSIM |
S5AXA=No S6PAA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 4G US LOW W01 | 1 | 84105A6CDE8 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant and Personal eSIM |
S5AXA=No S6PAA=Yes |
|||||||||
| 01 | Telematic Communication Box 4 | 5G US HIGH W01 | 1 | 84105A44977 | Shop at ECS Tuning | |||||
| 02 | Battery | NICKEL - TCB4 | 1 | 84109878663 | Shop at ECS Tuning | |||||
| For vehicles with Highway assistant |
S5AXA=Yes |
|||||||||
| 02 | Battery | LITHIUM - TCB4 | 1 | 84109858517 | Shop at ECS Tuning | |||||
