USB separate components for BMW 7 Series G70 750eX (2025)

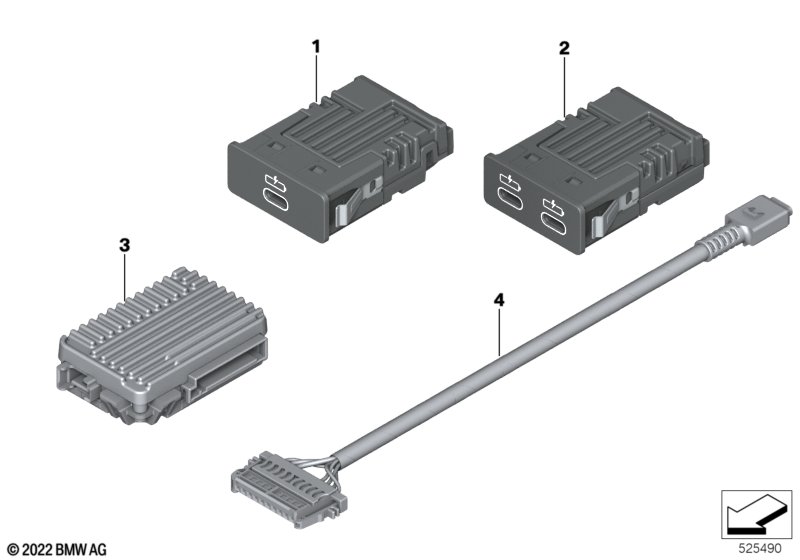

This USB separate components technical drawing provides a detailed breakdown of the assembly for the 7 Series G70 750eX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Centre console | ||||||||||
| 01 | USB port | DUAL AKTIVE | 1 | 84105A27DE6 | ENDED | Shop at ECS Tuning | ||||
| 01 | USB port | DUAL AKTIVE | 1 | 84105A8D637 | NoS | Shop at ECS Tuning | ||||
| center armrest, rear | ||||||||||
| 02 | USB port | DUAL | 1 | 84105A84177 | ENDED | Shop at ECS Tuning | ||||
| 02 | USB port | DUAL | 1 | 84105B51C74 | NoS | Shop at ECS Tuning | ||||
| 03 | USB port | SINGLE, MQS | 2 | 84105A584E0 | Shop at ECS Tuning | |||||
| 03 | USB port | SINGLE, MQS | 2 | 84105A84178 | NoS | Shop at ECS Tuning | ||||
| 04 | USB cable | MQS | 2 | 84105A584E2 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G70 750eX USB separate components?
- This technical diagram illustrates the USB separate components within the Communication systems group for the 7 Series G70 750eX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the USB port (Part #84105A27DE6).
- Which models use the hardware listed in this USB separate components?
- The hardware and components featured in the USB separate components are specific to the 7 Series G70 750eX produced during 2025. These technical specifications ensure that parts like the USB port (84105A27DE6) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the USB separate components assembly?
- Each item in the USB separate components corresponds to the numbered list below the illustration. For the 7 Series G70 750eX, you can identify the USB port by locating its position on the schematic, which then links to the official BMW part number 84105A27DE6 for the Communication systems section.
