Telematic Communication Box 4 for BMW 4 Series G23 Convertible LCI M440iX (2025)

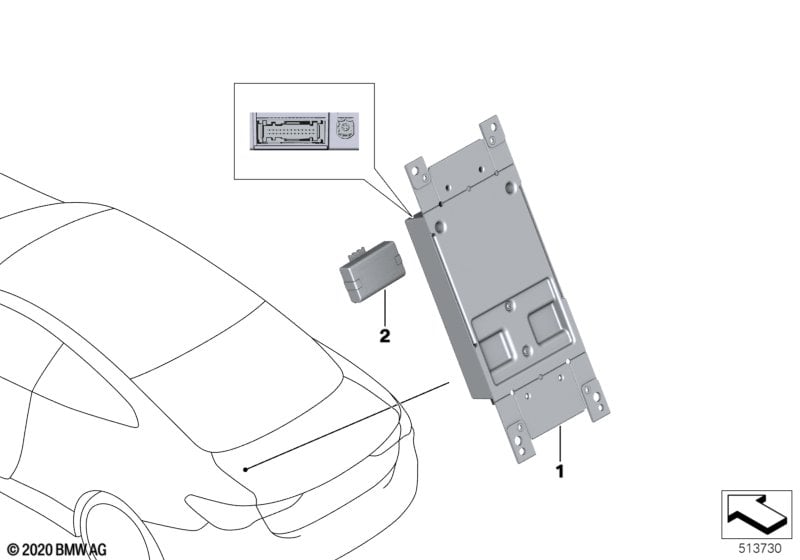

This Telematic Communication Box 4 technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Teleservices and Personal eSIM and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6PAA=Yes S8SXA=Yes |
|||||||||
| 01 | Telematic Communication Box 4 | 5G ROW GPR | 1 | 03/2023 | 84105A9DCE2 | ENDED | Shop at ECS Tuning | |||
| 01 | Telematic Communication Box 4 | 5G ROW GPR | 1 | 03/2023 | 84105B41AC9 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6PAA=Yes S8LHA=Yes S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 5G CHN GPR | 1 | 03/2023 | 84105A44986 | Shop at ECS Tuning | ||||
| 01 | Telematic Communication Box 4 | 5G CHN GPR | 1 | 03/2023 | 84105B44BC8 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6AFA=Yes S6PAA=No S8SXA=Yes |
|||||||||
| 01 | Telematic Communication Box 4 | 4G ROW LOW GPR | 1 | 03/2023 | 84105A9DCE0 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6AFA=No S6PAA=No S8SXA=Yes |
|||||||||
| 01 | Telematic Communication Box 4 | 4G ROW LOW GPR | 1 | 03/2023 | 84105A9DCE0 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=No S6AFA=Yes S6PAA=No S8SXA=Yes |
|||||||||
| 01 | Telematic Communication Box 4 | 4G ROW LOW GPR | 1 | 03/2023 | 84105A9DCE0 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6PAA=Yes S8LHA=No S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 5G ECE GPR | 1 | 03/2023 | 84105B5B875 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6AFA=Yes S6PAA=No S8LHA=No S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 4G ECE LOW GPR | 1 | 03/2023 | 84105B5B874 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6AFA=No S6PAA=No S8LHA=No S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 4G ECE LOW GPR | 1 | 03/2023 | 84105B5B874 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=No S6AFA=Yes S6PAA=No S8LHA=No S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 4G ECE LOW GPR | 1 | 03/2023 | 84105B5B874 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6AFA=Yes S6PAA=No S8LHA=Yes S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 4G CHN LOW GPR | 1 | 03/2023 | 84105B44BC7 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=Yes S6AFA=No S6PAA=No S8LHA=Yes S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 4G CHN LOW GPR | 1 | 03/2023 | 84105B44BC7 | Shop at ECS Tuning | ||||
| For vehicles with Teleservices and Statutory emergency request and Personal eSIM and Country-spec.ctrl Hong Kong/Macao 04142 and Providersteuerung Telematik Attention: Battery is not a constituent of the telematics control module and must be ordered separately, if necessary! |
S6AEA=No S6AFA=Yes S6PAA=No S8LHA=Yes S8SXA=No |
|||||||||
| 01 | Telematic Communication Box 4 | 4G CHN LOW GPR | 1 | 03/2023 | 84105B44BC7 | Shop at ECS Tuning | ||||
| 02 | Battery | NICKEL - TCB4 | 1 | 03/2023 | 84109878663 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI M440iX Telematic Communication Box 4?
- This technical diagram illustrates the Telematic Communication Box 4 within the Communication systems group for the 4 Series G23 Convertible LCI M440iX produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Telematic Communication Box 4 (Part #84105A9DCE2).
- Which models use the hardware listed in this Telematic Communication Box 4?
- The hardware and components featured in the Telematic Communication Box 4 are specific to the 4 Series G23 Convertible LCI M440iX produced during 2025. These technical specifications ensure that parts like the Telematic Communication Box 4 (84105A9DCE2) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Telematic Communication Box 4 assembly?
- Each item in the Telematic Communication Box 4 corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI M440iX, you can identify the Telematic Communication Box 4 by locating its position on the schematic, which then links to the official BMW part number 84105A9DCE2 for the Communication systems section.
