Single parts f Classic hands-free facil. for BMW 3 Series E46 318i (2001)

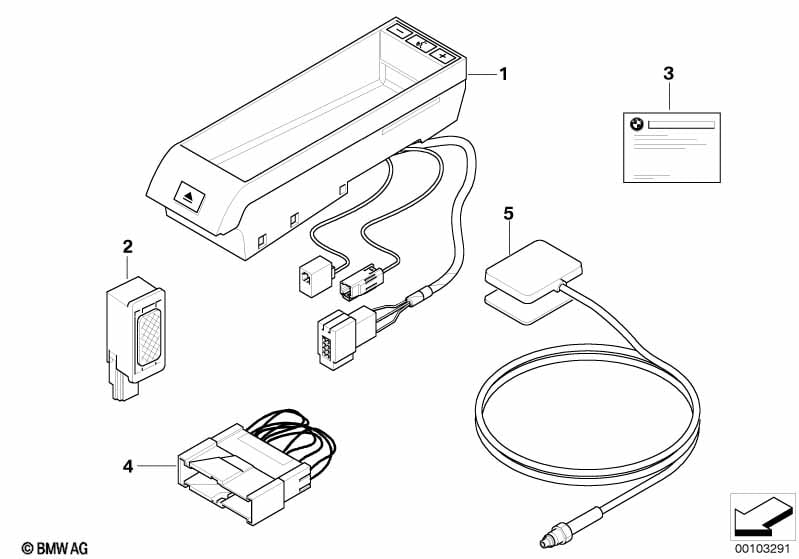

This Single parts f Classic hands-free facil. technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.

Single parts f Classic hands-free facil.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Cannot be controlled using MFL or MID
Only function with
Adapter Snap-In (BTE:840463)
01 Universal hands-free kit MONO. OHNE SES 1 84210148807 ENDED Shop at ECS Tuning
02 Hands free telephone microphone NETZ GMS/PCN 1 84318380319 $94.75 ENDED Shop at ECS Tuning
03 Operating instructions UFE COMFORT 1 01290301781 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
S640A=Yes
04 Plug bridge cable adapter BIT II 1 84320144146 $18.43 ENDED Shop at ECS Tuning
For vehicles with
Preparation f tel.installation universal
S640A=No
05 Retrofit kit, window antenna DUALBAND 1 84540148389 $73.00 ENDED Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
