LTE compensator for BMW 7 Series G12 740LeX (2018)

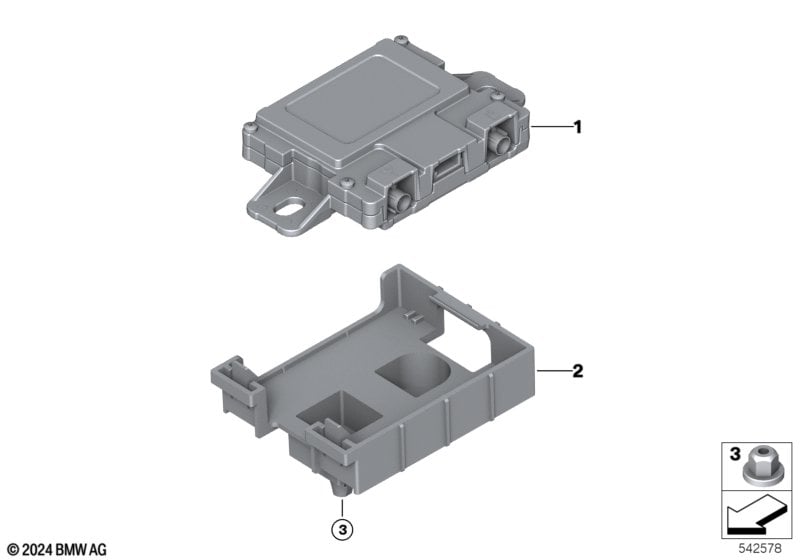

This LTE compensator technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LeX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 01 | LTE compensator | CHN | 1 | 84108735009 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version Australia and Gulf version and Country-specific equipment Turkey 01626 and Country-spec.ctrl Hong Kong/Macao 04142 and Country control Indonesia and Country control for Singapore 00780 |
L802A=No L810A=No L822A=No S8LCA=No S8LHA=No S8LKA=No S8LSA=No |
|||||||||
| 01 | LTE compensator | ECE | 1 | 01/2019 | 84109358302 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Korea and National version Australia and Gulf version and Country-specific equipment Turkey 01626 and Country-spec.ctrl Hong Kong/Macao 04142 and Country control Indonesia and Country control for Singapore 00780 |
L802A=Yes L810A=Yes L822A=Yes S8LCA=Yes S8LHA=Yes S8LKA=Yes S8LSA=Yes |
|||||||||
| 01 | LTE compensator | PASSIVE | 1 | 01/2019 | 84109128982 | ENDED | Shop at ECS Tuning | |||
| 01 | LTE compensator | PASSIVE | 1 | 84108735010 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version Australia and National version England / Ireland and Gulf version and Country-specific equipment Turkey 01626 and Country-spec.ctrl Hong Kong/Macao 04142 and Country control Indonesia and Country control for Singapore 00780 |
L802A=No L810A=No L812A=Yes L822A=No S8LCA=No S8LHA=No S8LKA=No S8LSA=No |
|||||||||
| 01 | LTE compensator | UK | 1 | 84109878658 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version Australia and National version England / Ireland and Gulf version and Country-specific equipment Turkey 01626 and Country-spec.ctrl Hong Kong/Macao 04142 and Country control Indonesia and Country control for Singapore 00780 |
L802A=No L810A=No L812A=No L822A=No S8LCA=No S8LHA=No S8LKA=No S8LSA=No |
|||||||||
| 01 | LTE compensator | ECE | 1 | 84108735007 | Shop at ECS Tuning | |||||
| 02 | Holder for LTE compensator | 1 | 84109323875 | Shop at ECS Tuning | ||||||
| For vehicles with Phoning with wireless charging and Phoning with wireless charging |
S6NVA=Yes S6NWA=Yes |
|||||||||
| 03 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
