USB hub for BMW 5 Series G30 540i (2019)

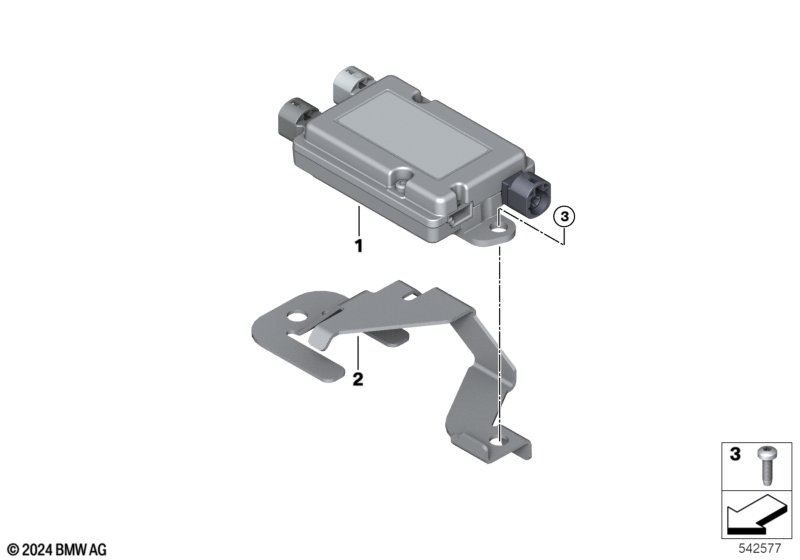

This USB hub technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | USB hub | 1 | 84109355549 | Shop at ECS Tuning | ||||||
| 02 | Holder | 1 | 84109362853 | Shop at ECS Tuning | ||||||
| 03 | Oval-head screw, self-tapping | M6X20 | 1 | 07149129752 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 540i USB hub?
- This technical diagram illustrates the USB hub within the Communication systems group for the 5 Series G30 540i produced during 2019. It provides a detailed exploded view of the components, identifying key parts such as the USB hub (Part #84109355549).
- Which models use the hardware listed in this USB hub?
- The hardware and components featured in the USB hub are specific to the 5 Series G30 540i produced during 2019. These technical specifications ensure that parts like the USB hub (84109355549) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the USB hub assembly?
- Each item in the USB hub corresponds to the numbered list below the illustration. For the 5 Series G30 540i, you can identify the USB hub by locating its position on the schematic, which then links to the official BMW part number 84109355549 for the Communication systems section.
