Winter tires for BMW 3 Series E46 320d (2005)

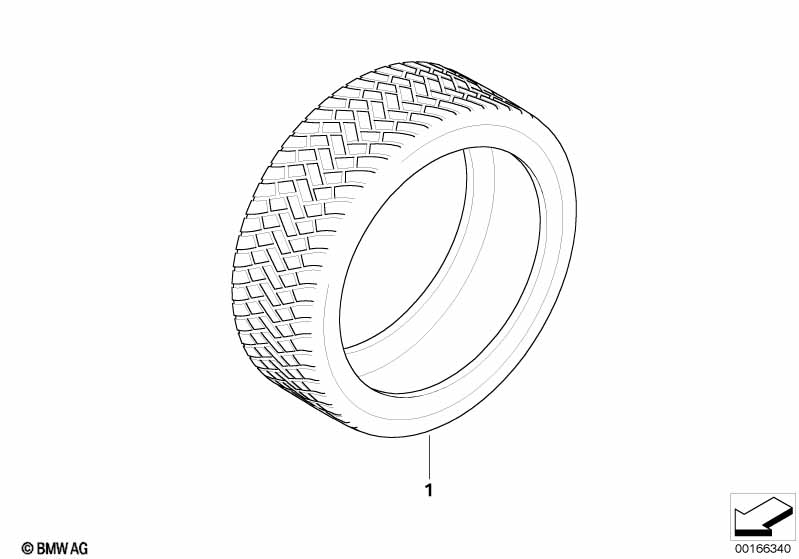

This Winter tires technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: Only for vehicles with approval in accordance with EU type approval. The selected wheel/tire combination is entry- relevant under certain circumstances. In the vehicle's oxidation catalytic converter, please check whether the wheel/tire combination is entered. If this is not the case, then give the customer either the excerpt from the EU type approval or the Part Certificate of Conformity. Where applicable, a subsequent national approval may be required for a specific country. For vehicles with National version China |
L8AAA=No |
||||||||
| Standard tires without emergency running properties |
||||||||||
| 01 | Continental WinterContact TS 790 V | 205/55R16 91H | 4 | 85452536947 | ENDED | Shop at ECS Tuning | ||||
| 01 | Pirelli W210 Snowsport | 205/55R16 91H | 4 | 85452537409 | ENDED | Shop at ECS Tuning | ||||
| 01 | Goodyear Ultra Grip 7+ | 205/55R16 91H | 4 | 85452538129 | ENDED | Shop at ECS Tuning | ||||
| 01 | Goodyear Ultra Grip 7+ | 205/55R16 91H | 4 | 85452729136 | Shop at ECS Tuning | |||||
| 01 | Pirelli W 210 Sottozero II | 205/55R16 91H | 4 | 85452539082 | ENDED | Shop at ECS Tuning | ||||
| 01 | Michelin Primacy Alpin PA3 | 205/55R16 91H | 4 | 85452538524 | ENDED | Shop at ECS Tuning | ||||
| 01 | Continental WinterContact TS 790 V | 225/50R16 93H | 4 | 85452535613 | ENDED | Shop at ECS Tuning | ||||
| 01 | Continental WinterContact TS 790 | 205/50R17 93H | 4 | 85452535614 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
